$17.70 ea
Quantity Price (USD)
1 $17.70 ea
20 $13.28 ea
100 $9.91 ea
200 $5.95 ea
500 Request Quote
In stock
Registered users receive a 5% discount

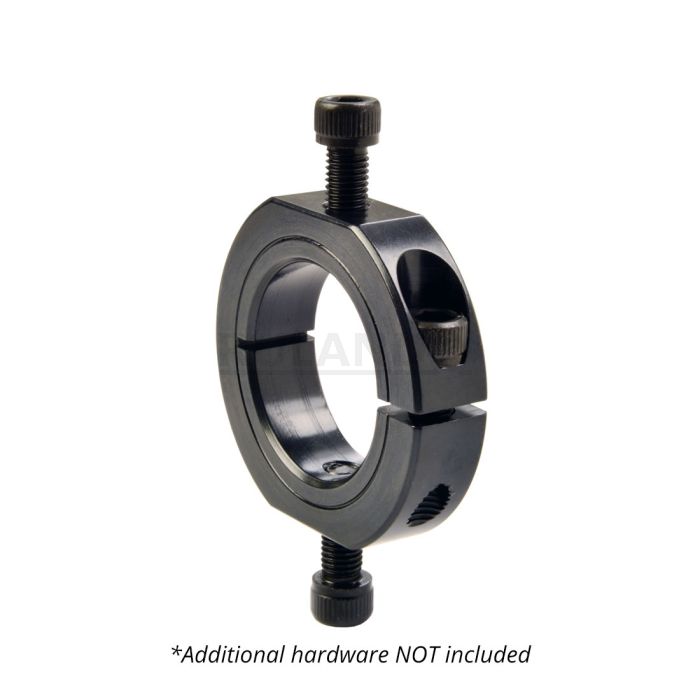

Ruland OF-CL-12-F, 3/4" Shaft Collar With OD Flats And Holes, Black Oxide Steel, One-Piece Clamp Style, 1 1/2" OD, 0.500" Width


Ruland OF-CL-12-F is a one-piece shaft collar with 3/4" bore, 1 1/2" OD, and 0.500" width. OF-CL-12-F has OD flats and tapped holes for mounting shaft collars to each other or adjacent components. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. OF-CL-12-F is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .002"). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power. OF-CL-12-F is stamped with the Ruland name and bore size for ease of identification. Forged screws test beyond ANSI standards to ensure maximum holding power. OF-CL-12-F is machined from solid bar stock to a fine burr free finish and sourced exclusively from North American mills. Ruland uses 1215 lead-free steel with a proprietary black oxide finish that produces a fine glossy finish while increasing holding power and resisting corrosion. It is RoHS2 and REACH compliant and manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

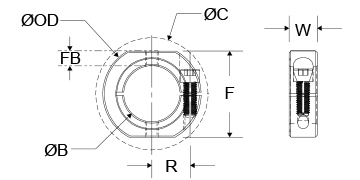

Bore B

0.7500 in

Bore Tolerance

+.002 in / +.0005 in

Outer Diameter OD

1 1/2 in

Clearance Diameter C MAX

1.808 in

Width W

0.500 in

Width Tolerance

+.003 in / -.010 in

Threaded Mounting Hole


Distance Across Flats F

1.313 in

Flat to Bore FB

0.28 in

Fastening Hardware

Forged Clamp Screw


Screw Material

Alloy Steel

Hex Wrench Size

3/16 in

Screw Finish

Black Oxide

Seating Torque

170 lb-in

Screw Location R

0.545 in

Number of Screws

1 ea

Additional Information

Material Specification

1215 Carbon Steel Bar


-40°F to 350°F
-40°C to 176°C

Finish Specification

Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried


Ruland Manufacturing

Country of Origin


Weight (lbs.)


Product Notes

Note 1

Additional mounting hardware not included.

Prop 65

WARNING This product can expose you to the chemical Ethylene Thiourea, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

ISO 9001:2015


Conflict Minerals
