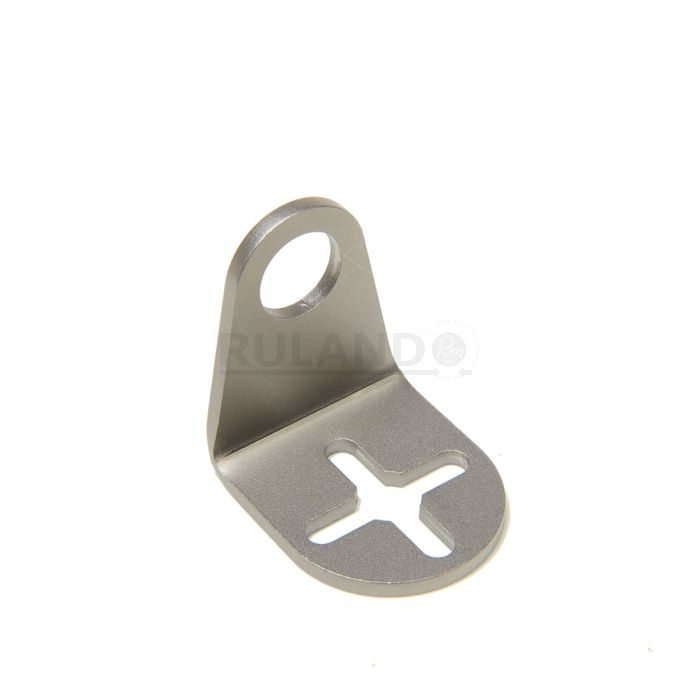

| Dimensions | |||
|---|---|---|---|
|
Thru Hole Diameter B |
8 mm |
Center Mounting Screw C1 Compatible screw size for cross center. |
M8 |
|
Cross Mounting Screws C2 Compatible screw size for cross ends. |
M4 |
Edge To Center L2 |
24.5 mm |
|
Center To Center LC |
20 mm |
Edge to Screw L3 |
20.5 mm |
|
Bracket Width W |
30 mm |
Thickness T |
2.5 mm |
|
Base Length L1 |
35.5 mm |
||
| Additional Information | |||
|
Weight (lbs) |
0.052900 |
Material Specification |
304 Stainless Steel |
|
Manufacturer |
JW Winco/ Otto Ganter |
UPC |
634529229446 |
|
Country of Origin |
Germany |
Tariff Code |
7609.00.0000 |
|
UNSPC Code used to identify products to standardize nomenclature around the world. |
31162908 |
||
| Product Notes | |||
|
Note 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
|
|
