MNTBRKT-PL-30-SS

$9.31
Quantity Price (USD)
1 $9.31
10 $8.57
25 $7.76
50 $6.98
100 Request Quote
In stock
Registered users receive a 5% discount

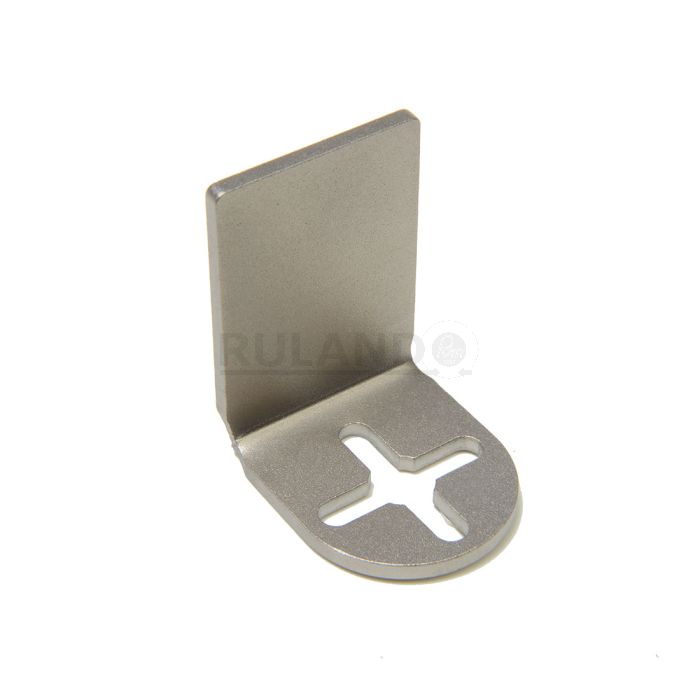

Ruland Mounting Bracket, W 30mm, Stainless Steel

PRODUCT SPECIFICATIONS

Ruland MNTBRKT-PL-30-SS is a mounting bracket with a 30mm bracket width, M8 center tapped hole, and M4 tapped holes in the cross. It is designed to fit with Ruland bracket clamps. MNTBRKT-PL-30-SS is made of stainless steel for corrosion resistance and durability in a variety of industrial environments. It is primarily used to mount sensors, screens, reflectors, plexiglass machine guards, and other industrial components. The user can drill thru or tapped holes to mount components or weld the component directly to the bracket. MNTBRKT-PL-30-SS is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUCT SPECIFICATIONS

Dimensions

Center Mounting Screw C1 Compatible screw size for cross center.

M8

Cross Mounting Screws C2 Compatible screw size for cross ends.

M4

Center To Center LC

20 mm

Edge to Screw L2

20.5 mm

Bracket Width W

30 mm

Thickness T

2.5 mm

Plate Height H1

42.5 mm

Base Length L1

35.5 mm

Additional Information

Weight (lbs)

0.081600

Material Specification

Type 303 Austenitic, Non-Magnetic Bar

Manufacturer

JW Winco/ Otto Ganter

UPC

634529229460

Country of Origin

Germany

Tariff Code

7609.00.0000

UNSPC Code used to identify products to standardize nomenclature around the world.

31162908

Product Notes

Note 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop 65 Required for the US State of California only.

WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant

REACH

Compliant
