90 Degree Sensor Mount Kit, MT15-2W-90-KIT

$142.90

Ruland 90 Degree Two-Way Sensor Mount Kit

PRODUCT SPECIFICATIONS

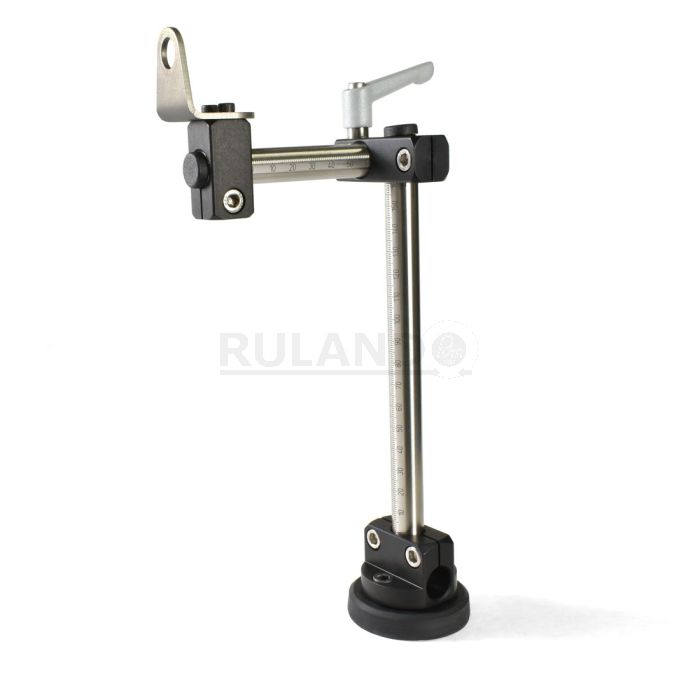

This 90 degree sensor mounting system is designed to mount round sensors with outer diameters up to 30mm. Starting from the bottom up, the parts that make up this system are:  a two-way mounting base, a round tube with a tube cap, a perpendicular two-way connector, another round tube with tube caps, a bracket clamp, and the sensor bracket. A couple of add-on pieces are available to make the system more portable and easier to adjust. A portable magnetic base can be added to enable users to quickly move the system to different locations without tools. A clamping lever kit can also be added, allowing users to adjust the height of the system by sliding the connectors along the round tube. Tubes with scales are available for precise adjusting of the system. All of these parts combine to make a highly customizable system that is easy to assemble, install, move, and adjust.

PRODUCT SPECIFICATIONS

This Kit Includes

Included Item 1 Number corresponds to image that identifies each part.

2. Mounting Base, MT15/15-CB2W-AN

Included Item 2 Number corresponds to image that identifies each part.

4. Two-Way Connector, MT15/15-CC2W-AN

Included Item 3 Number corresponds to image that identifies each part.

7. Bracket Clamp, MT15-CSBC-M8-AN

Included Item 4 Number corresponds to image that identifies each part.

9. Tube Cap, MT15-RTUBECAP-P

You Must Select

Configurable Item 1 Number corresponds to image that identifies each part.

3. 100mm Tube, MT15-ROD-100-SS
3. 200mm Tube, MT15-ROD-200-SS
3. 300mm Tube, MT15-ROD-300-SS
3. 100mm Tube with Scale, MT15-SROD-100-SS
3. 200mm Tube with Scale, MT15-SROD-200-SS
3. 300mm Tube with Scale, MT15-SROD-300-SS

Configurable Item 2 Number corresponds to image that identifies each part.

6. 100mm Tube, MT15-ROD-100-SS
6. 200mm Tube, MT15-ROD-200-SS
6. 300mm Tube, MT15-ROD-300-SS
6. 100mm Tube with Scale, MT15-SROD-100-SS
6. 200mm Tube with Scale, MT15-SROD-200-SS
6. 300mm Tube with Scale, MT15-SROD-300-SS

Configurable Item 3 Number corresponds to image that identifies each part.

8. Sensor Bracket w/8mm hole
8. Sensor Bracket w/12mm hole
8. Sensor Bracket w/18mm hole
8. Sensor Bracket w/30mm hole
Mounting Bracket without Hole

Your Extra Options Are

Optional Item 1 Number corresponds to image that identifies each part.

1. Magnet, MAGNET-57-32

Optional Item 2 Number corresponds to image that identifies each part.

5. Clamping Lever, MT15:16:20-ALK-M6-25

Additional Information

Weight (lbs)

0.299800

Manufacturer

JW Winco/ Otto Ganter

UPC

634529305317

Country of Origin

Germany

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant

REACH

Compliant
