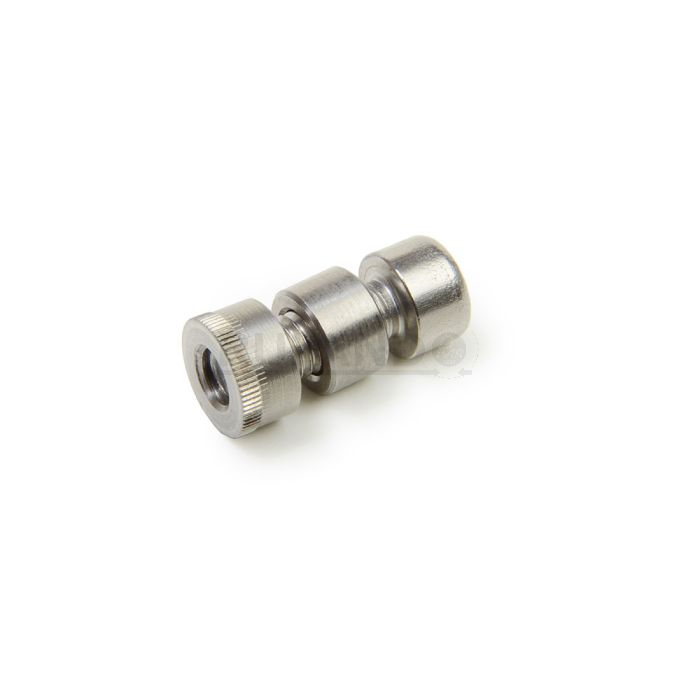

| Dimensions | |||
|---|---|---|---|
|
Sleeve & Stud Length L1 |
30 mm |
Sleeve Length L2 |
6.5 mm |
|
Sleeve Diameter D1 |
10.5 mm |
Threaded Bushing Height T1 |
6 mm |
|
Threaded Bushing Diameter T2 |
10.5 mm |
Guide Bushing Height G1 |
7 mm |
|
Guide Bushing Diameter G2 |
9.9 mm |
Assembled Height HA |
23.5 mm |
| Fastening Hardware | |||
|
Thread (TH) |
M6 |
Thread Length |
23.5 mm |
|
Thread Pitch |
1 mm |
||
| Additional Information | |||
|
Insert and Screw Material |
303 Stainless Steel |
Weight (lbs) |
0.044100 |
|
Manufacturer |
JW Winco/ Otto Ganter |
UPC |
634529238295 |
|
Country of Origin |
Germany |
Tariff Code |
7318.29.0000 |
|
UNSPC Code used to identify products to standardize nomenclature around the world. |
31162908 |
||
| Product Notes | |||
|
Note 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
|
|
