MT10-CSSWS-A

$40.98
Quantity Price (USD)
1 $40.98
10 $37.70
25 $34.14
50 $30.74
100 Request Quote
In stock
Registered users receive a 5% discount
Only 3 left

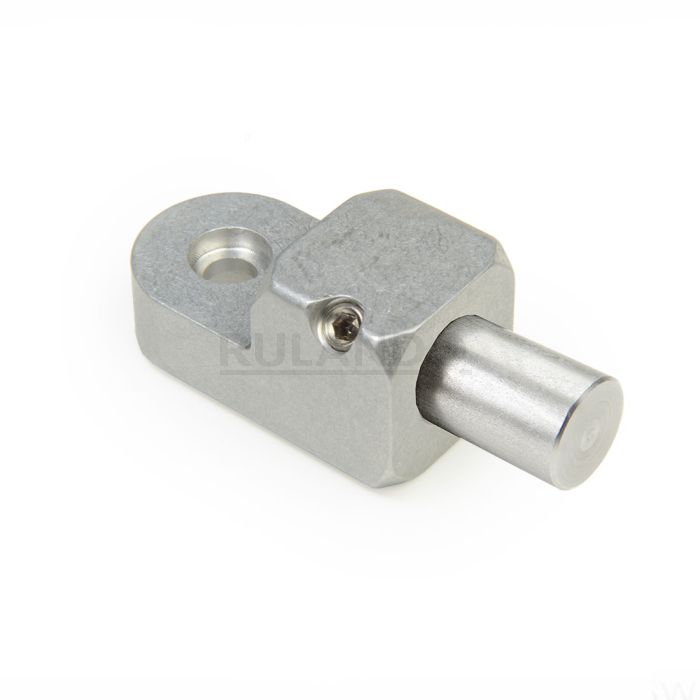

Ruland Set Screw Swivel Clamp Joint With Stud, Swivel Thru Hole 5.5mm, Stud Diameter 10mm, Stud Length 17mm, L 55mm, Aluminum

PRODUCT SPECIFICATIONS

Ruland MT10-CSSWS-A is a swivel clamp joint with stud with 10mm stud diameter, 17mm stud length, M5 set screw, 10mm base height, 20mm width and height, and 38mm overall length. It is designed to fit with MT10:12 swivel clamp bases, MT10 clamp connectors and mounting blocks, and MT10 round tubes. When combined with a swivel bases or attachment clamp joints, it is an ideal articulating mounting solution for screens, sensors, reflectors, plexiglass machine guards, and other components that require frequent adjustments. The stud allows for a more compact installation than other connectors which require the use of a second tube that is significantly longer than the stud. An MT10:12-ALK-M5-20 adjustable clamping handle can be used to join it to other Ruland swivel components for rapid repositioning without the use of tools. This part is aluminum with a matte tumbled finish for use in most industrial environments. MT10-CSSWS-A is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUCT SPECIFICATIONS

Dimension

Bolt Diameter DB

10 mm

Bolt Length LB

17 mm

Counterbore 1 Diameter K1

8.5 mm

Counterbore 2 Diameter K2

5.5 mm

Overall Length L1

38 mm

Hub Length LH

17 mm

Edge To Center L2

28 mm

Base Height H1

10 mm

Width & Height W1

20 mm

Hole Depth T

10 mm

Set Screw SS

M5

Screw To Edge LS

7 mm

Additional Information

Material Specification

Aluminum

Manufacturer

JW Winco/ Otto Ganter

Country of Origin

Germany

Weight (lbs)

0.092700

UPC

634529230138

Tariff Code

7609.00.0000

UNSPC Code used to identify products to standardize nomenclature around the world.

31162908

Product Notes

Note 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop 65 Required for the US State of California only.

WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant
