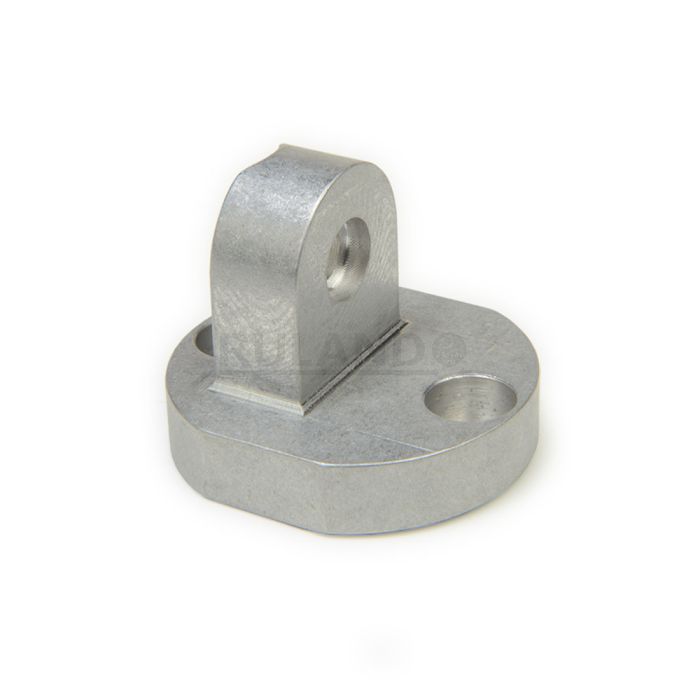

Ruland MT10:12-CBSW-20-A is a swivel clamp connector base with a 35mm base width, 38mm base diameter, 20mm clamp width, M5 clamp screw, and 30mm overall length. It is designed to fit with MT10, MT12, and MT10:12 swivel clamp joints, t-swivel clamp joints, and swivel mounts with the same width and height. When combined with a swivel clamp or connector MT10:12-CBSW-20-A is an ideal articulating mounting solution for screens, sensors, reflectors, plexiglass machine guards, and other components that require frequent adjustments. An MT10:12-SWALK-M5-20 adjustable clamping handle can be used to join it to clamps and connectors for rapid repositioning without the use of tools. It is aluminum and screws are 304 stainless steel for use in most industrial applications. MT10:12-CBSW-20-A can be permanently installed on extruded aluminum frames, sheet metal, and other surfaces using M5 hardware or the user can opt for portability by using MAGNET-43-27 magnetic base. It is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.
PRODUCT SPECIFICATIONS
Dimension
Base Width WB
35 mm
Base Height H2
8 mm
Base Diameter D1
38 mm
Clamp Length L1
20 mm
Clamp Width WC
10 mm
Overall Height H1
30 mm
Center To Center LC
27 mm
Edge To Center L2
20 mm
Mounting Counterbore Diameter MC
M5
Counterbore to Base CB
2.5 mm
Swivel Counterbore 1 Diameter S1
5.5 mm
Swivel Counterbore 2 Diameter S2
9 mm
Additional Information
Material Specification
Aluminum
Manufacturer
JW Winco/ Otto Ganter
Country of Origin
Germany
Weight (lbs)
0.068300
UPC
634529231418
Tariff Code
7609.00.0000
UNSPC
Code used to identify products to standardize nomenclature around the world.
