M-IPL-7.9-5/8X18-F

$20.23
Quantity Price (USD)
1 $20.23
100 $18.61
250 $16.85
500 $15.17
1000 Request Quote
In stock
Registered users receive a 5% discount
Only 5 left

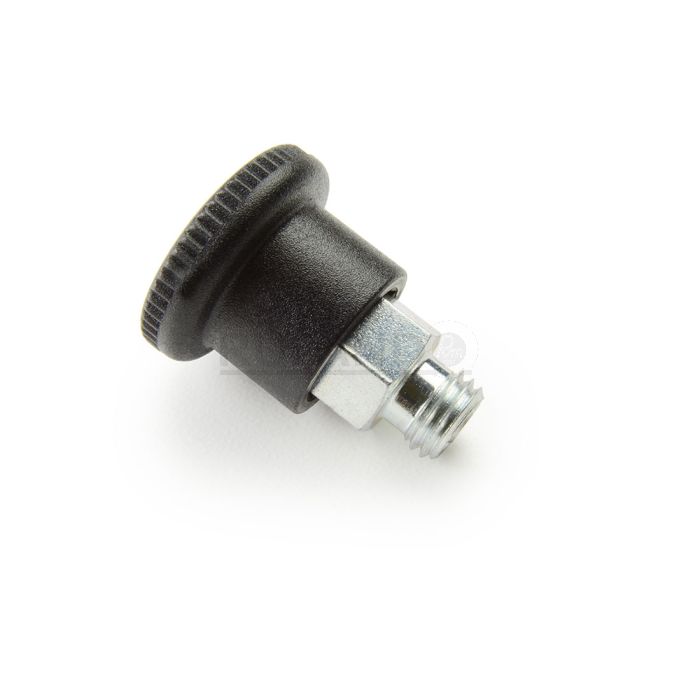

Ruland Mini Indexing Plunger With Knob, Lock-Out, Thread 5/8x18, Pin Diameter 7.9mm, Knob Diameter 33mm, L 47.5mm, Steel

Explore Similar Products

PRODUCT SPECIFICATIONS

Ruland M-IPL-7.9-5/8X18-F is a mini steel indexing plunger with a plastic knob and lock-out. It has a 7.9mm pin diameter, 10mm pin length, 5/8x18 thread, 12mm tapped thread length, 33mm knob diameter, 25.5mm knob height, and 47.5mm overall length. The small size compared to standard indexing plungers allows M-IPL-7.9-5/8X18-F to be used in compact installations with space restrictions. This indexing plunger is commonly used for height adjustments, rotational or swivel limits, and as a quick way to detach a movable component from a stationary one. It is found in light duty applications where frequent repositioning is required. To operate, the user simply retracts the knob pulling the pin into the body of the plunger allowing a previously fixed component to be moved. The lockout feature of M-IPL-7.9-5/8X18-F allows the user to turn the knob 90 degrees once the pin has been retracted to lock the pin in-place until the component is in the desired location. While locked out, a notch in the plunger holds the knob in place preventing it from slipping into the unlocked position due to system vibration or a user accidentally bumping the knob. Once the desired location is reached, the user turns the knob 90 degrees to reactivate the locking mechanism to fix the component in-place. M-IPL-7.9-5/8X18-F is manufactured by Otto Ganter, stocked by Ruland, and RoHS3 compliant.

PRODUCT SPECIFICATIONS

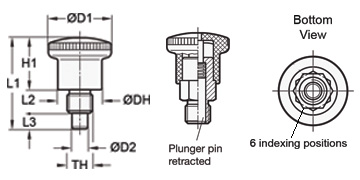

Dimensions

Overall Length L1

47.5 mm

Body Length L2

12 mm

Knob Height H1

25.5 mm

Knob Diameter D1

32 mm

Pin Diameter D2

7.9 mm

Pin Length L3

10 mm

Hub Diameter DH

23 mm

Thread (TH)

5/8 in - 18 TPI

Hex Nut Size

17 mm

Additional Information

Plunger Pin Tolerance The manufacturing tolerance of the end pin.

+0.03/+0.08 mm

Initial Spring Load The axial load output by the spring when not in use.

11 N

End Spring Load The axial load output by the spring when in use.

35 N

Hole Tolerance

+0.036/-0 mm

Weight (lbs)

0.143100

Temperature Minimum and maximum operating temperature. Operating temperature includes ambient temperature plus or minus factors such as system heat generated during operation, washdown, vacuum, etc...

-40°F to 230°F (-40°C to 110°C)

Manufacturer

JW Winco/ Otto Ganter

UPC

634529229897

Country of Origin

Germany

Tariff Code

7318.29.0000

UNSPC Code used to identify products to standardize nomenclature around the world.

31162809

Product Notes

Note 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop 65 Required for the US State of California only.

WARNING This product can expose you to chemicals including Soots, Lead, and Nickel (metallic), known to the State of California to cause cancer, and Lead known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant
