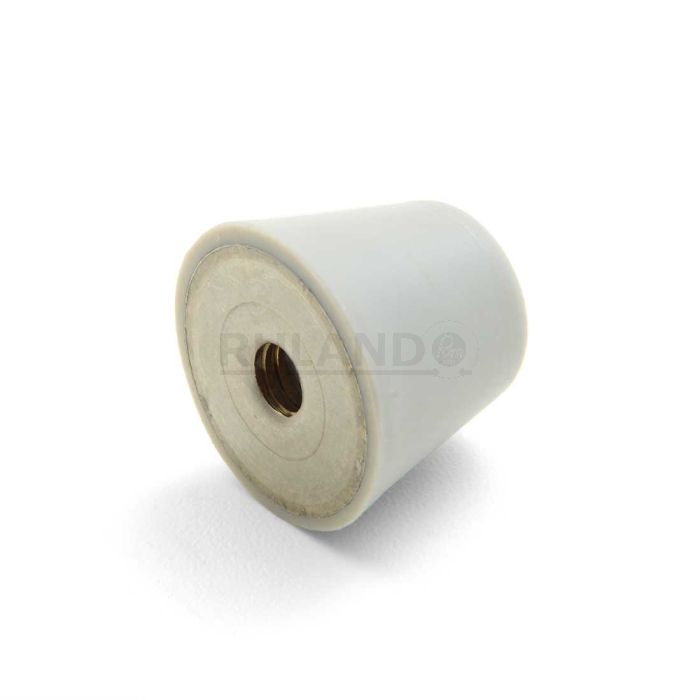

Ruland VMTT38-32-5/16-55-SSPS is a rubber bumper with a tapped hole. It has a 1.5" outside diameter, 5/16x18 tapped hole, 0.31" tapped hole depth, and 1.26" height. This rubber bumper is manufactured with FDA compliant materials for use in food processing, packaging, and medical equipment . It is often referred to as a sandwich mount or rubber buffer because it functions as shock or vibration isolator sandwiched between two machine components or surfaces. VMTT38-32-5/16-55-SSPS has a tapered (conical) shape for gentler accommodation of shock loads when compared to cylindrical types. It can be mounted to the system by passing it through an unthreaded hole and securing with a nut or threading it directly into tapped holes on the component it will be mounted to. The 304 stainless steel body combined with silicone rubber jacket makes for a bumper that can withstand temperatures up to 392F (200C) and has increased service life when compared to nitrile or natural rubber. VMTT38-32-5/16-55-SSPS has 55 Shore A hardness for a balance of rigidty and shock absorption. It is sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.
PRODUCT SPECIFICATIONS
Dimensions
Outer Diameter (OD)
1.50 in (38 mm)
Height (H1)
1.26 in (32 mm)
Thread (TH)
5/16 in - 18 TPI
Plate Thickness (PT)
0.08 in (2 mm)
Tapped Hole Depth (LT)
0.31 in (7.9 mm)
Performance Specifications
Spring Rate
645 lb/in (113 N/mm)
Shore Hardness
55A (+/- 5)
Max Deflection
0.31 in (7.9 mm)
Max Axial Load
202 lb (900 N)
Additional Information
Geometry
Truncated Conical
Rubber Material
Silicone
Metal Material
Stainless Steel
Metallic Body Finish
Bright
Country of Origin
Hungary
Weight (lbs)
0.088200
UPC
634529363935
Tariff Code
4016.99.6000
UNSPC
Code used to identify products to standardize nomenclature around the world.
31162804
Product Notes
Note 1
Performance ratings are for guidance only. The user must determine suitability for a particular application.
