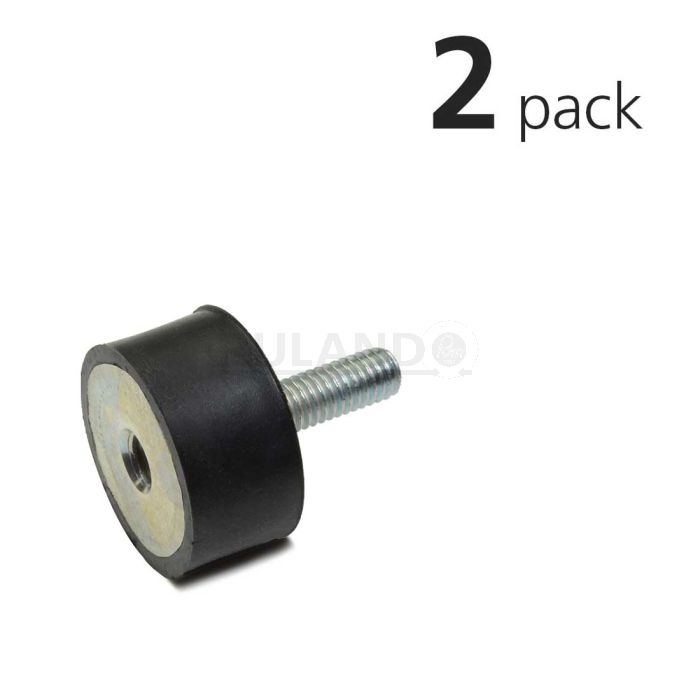

Ruland VMTSC40-30-M8-55-SSNR/2PK is a 2 pack of vibration isolation mounts, each with one tapped hole and one threaded stud. An individual vibration isolation mount 40mm outside diameter, M8 threaded stud, M8 tapped hole, 23mm stud length, 8mm tapped hole depth, and 30mm height. Vibration isolation mounts are used to dampen shock loads and reduce noise and wear on industrial equipment such as motors, conveyors, compressors, fans, or pumps which allows for a safer and more pleasant working environment. They are referred to as a sandwich mount or rubber buffer because they function as a shock or vibration isolator sandwiched between two machine components or surfaces. The threaded stud side can be mounted to the system by passing it through an unthreaded hole and securing with a nut or threading it directly into tapped hole on the component it will be mounted to. The tapped hole can be mounted to the system by threading it onto an existing stud on the component. The rubber jacket is made from natural rubber which has good elasticity and is well suited for most industrial equipment. Rubber bumpers in this pack have 55 Shore A hardness for a balance of rigidity and shock absorption. Bodies are made from stainless steel allowing for increased corrosion resistance. These rubber bumpers are sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.
PRODUCT SPECIFICATIONS
Dimensions
Outer Diameter (OD)
1.57 in (40 mm)
Height (H1)
1.18 in (30 mm)
Thread (TH)
M8 x 1.25
Plate Thickness (PT)
0.08 in (2 mm)
Stud Length (LS)
0.91 in (23 mm)
Tapped Hole Depth (LT)
0.31 in (7.9 mm)
Performance Specifications
Spring Rate
1199.13 lb/in (210 N/mm)
Shore Hardness
55A (+/- 5)
Max Deflection
0.30 in (7.6 mm)
Max Axial Load
352.95 lb (1570 N)
Additional Information
Multipack Quantity
2
Geometry
Cylindrical
Rubber Material
Natural Rubber
Metal Material
Stainless Steel
Metallic Body Finish
Bright
Country of Origin
Hungary
Weight (lbs)
0.348900
UPC
634529313879
Tariff Code
4016.99.6000
UNSPC
Code used to identify products to standardize nomenclature around the world.
31162804
Product Notes
Note 1
Performance ratings are for guidance only. The user must determine suitability for a particular application.
