VMTSC20-20-M6-55-FZNR/25PK

$59.25
Quantity Price (USD)
1 $59.25
2 $54.50
4 $49.25
10 $44.50
20 Request Quote
In stock
Registered users receive a 5% discount
Only 1 left

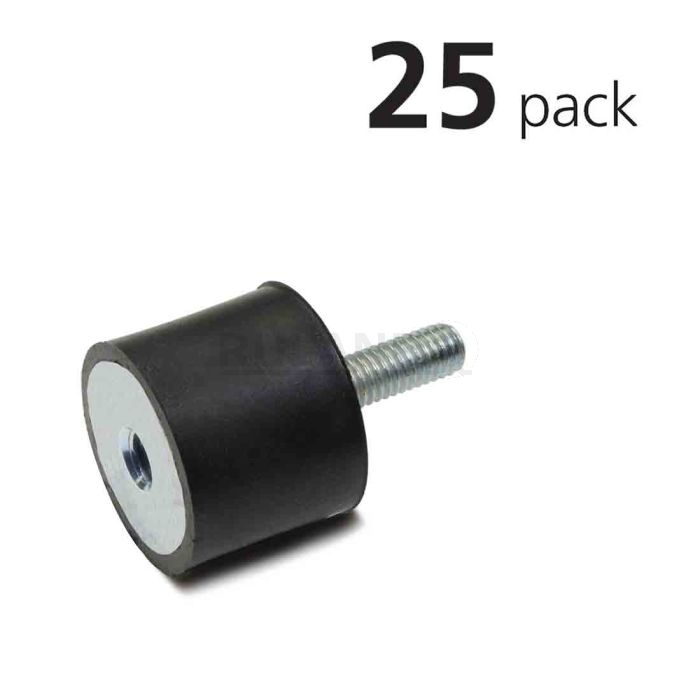

Ruland VMTSC20-20-M6-55-FZNR/25PK, 25 Pack Of Vibration Isolation Mounts, 20mm OD, M6 Threaded Stud, M6 Tapped Hole, 18mm Stud Length, 6mm Tapped Hole Depth, 20mm Height, 55 Shore A Natural Rubber Jacket, Steel

PRODUCT SPECIFICATIONS

Ruland VMTSC20-20-M6-55-FZNR/25PK is a 25 pack of vibration isolation mounts, each with one tapped hole and one threaded stud. An individual vibration isolation mount 20mm outside diameter, M6 threaded stud, M6 tapped hole, 18mm stud length, 6mm tapped hole depth, and 20mm height. Vibration isolation mounts are used to dampen shock loads and reduce noise and wear on industrial equipment such as motors, conveyors, compressors, fans, or pumps which allows for a safer and more pleasant working environment. They are referred to as a sandwich mount or rubber buffer because they function as a shock or vibration isolator sandwiched between two machine components or surfaces. The threaded stud side can be mounted to the system by passing it through an unthreaded hole and securing with a nut or threading it directly into tapped hole on the component it will be mounted to. The tapped hole can be mounted to the system by threading it onto an existing stud on the component. The rubber jacket is made from natural rubber which has good elasticity and is well suited for most industrial equipment. Rubber bumpers in this pack have 55 Shore A hardness for a balance of rigidity and shock absorption. Bodies are made from zinc plated steel allowing for high strength suitability in most industrial applications. These rubber bumpers are sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.

PRODUCT SPECIFICATIONS

Dimensions

Outer Diameter (OD)

0.79 in (20 mm)

Height (H1)

0.79 in (20 mm)

Thread (TH)

M6 x 1.0

Plate Thickness (PT)

0.08 in (2 mm)

Stud Length (LS)

0.71 in (18 mm)

Tapped Hole Depth (LT)

0.24 in (6.1 mm)

Performance Specifications

Spring Rate

485.36 lb/in (85 N/mm)

Shore Hardness

55A (+/- 5)

Max Deflection

0.20 in (5.0 mm)

Max Axial Load

96.67 lb (430 N)

Additional Information

Multipack Quantity

25

Geometry

Cylindrical

Rubber Material

Natural Rubber

Metal Material

Zinc Plated Steel

Metallic Body Finish

Zinc-Plated

Country of Origin

Hungary

Weight (lbs)

0.937000

UPC

634529313626

Tariff Code

4016.99.6000

UNSPC Code used to identify products to standardize nomenclature around the world.

31162804

Product Notes

Note 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop 65 Required for the US State of California only.

WARNING This product can expose you to the chemical Soots

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant
