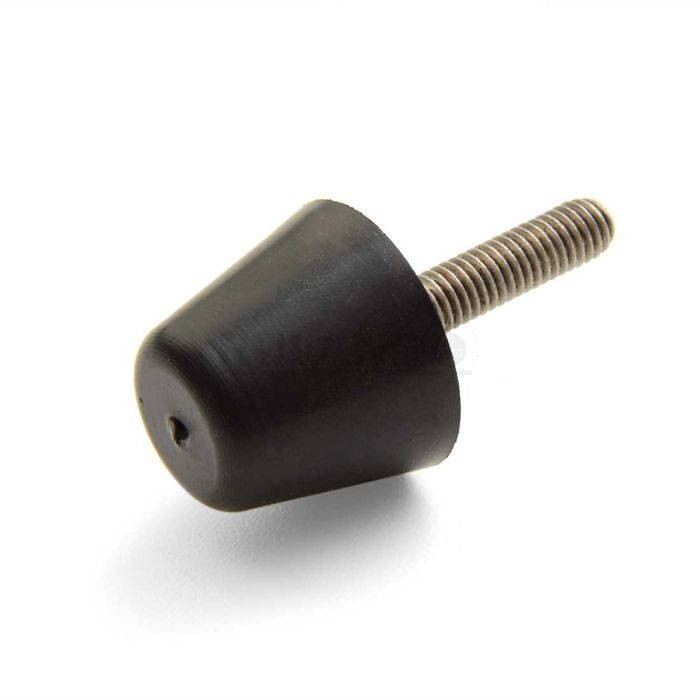

Ruland VMST38-32-M8-30-55-SSNI is a rubber bumper with a threaded stud. It has a 38mm outside diameter, M8 threaded stud, 30mm stud length, and 32mm height. This rubber bumper is used to dampen shock loads and reduce noise and wear on industrial equipment, machine doors, and floors or other surfaces which allows for a safer and more pleasant working environment. It is often referred to as a sandwich mount or rubber buffer because it functions as shock or vibration isolator sandwiched between two machine components or surfaces. VMST38-32-M8-30-55-SSNI has a tapered (conical) shape for gentler accommodation of shock loads when compared to cylindrical types. It can be mounted to the system by passing it through an unthreaded hole and securing with a nut or threading it directly into tapped holes on the component it will be mounted to. The rubber jacket is made from nitrile for better wear and chemical resistance than natural rubber. VMST38-32-M8-30-55-SSNI has 55 Shore A hardness for a balance of rigidty and shock absorption. The stainless steel body allows for increased corrosion resistance. It is sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.
PRODUCT SPECIFICATIONS
Dimensions
Outer Diameter (OD)
1.50 in (38 mm)
Height (H1)
1.26 in (32 mm)
Thread (TH)
M8 x 1.25
Plate Thickness (PT)
0.08 in (2 mm)
Stud Length (LS)
1.18 in (30 mm)
Performance Specifications
Spring Rate
714 lb/in (125 N/mm)
Shore Hardness
55A (+/- 5)
Max Deflection
0.37 in (9.4 mm)
Max Axial Load
270 lb (1200 N)
Additional Information
Geometry
Truncated Conical
Rubber Material
Nitrile
Metal Material
Stainless Steel
Metallic Body Finish
Bright
Country of Origin
Hungary
Weight (lbs)
0.119000
UPC
634529363867
Tariff Code
4016.99.6000
UNSPC
Code used to identify products to standardize nomenclature around the world.
31162804
Product Notes
Note 1
Performance ratings are for guidance only. The user must determine suitability for a particular application.
