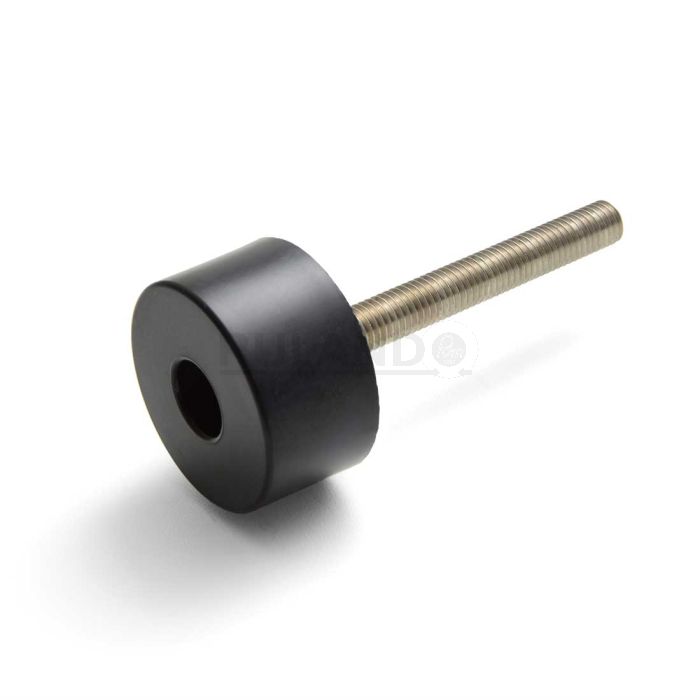

Ruland VMSF50-22-M10-45-70-SSNI is a rubber leveling foot with a threaded stud. It has a 50mm outside diameter, M10 threaded stud, 45mm stud length, and 22mm height. This rubber leveling foot can be used on a floor or other flat surface to dampen shock loads and reduce noise and wear on industrial equipment such as conveyors, motors, fans, and pumps. The threaded stud is riveted to the body which allows it to directly withstand compressive forces and effectively transmit the load to the rubber jacket. This is critical as loads are often unevenly distributed during operation due to imperfections in the floor or surface the leveling foot rests on. VMSF50-22-M10-45-70-SSNI can be mounted to the system by passing it through an unthreaded hole and securing with a nut or threading it directly into tapped holes on the component it will be mounted to. The rubber jacket is made from nitrile for better wear and corrosion resistance than natural rubber. It has 70 Shore A hardness for high rigidity and load capacity. The stainless steel body allows for increased corrosion resistance. VMSF50-22-M10-45-70-SSNI is sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.
PRODUCT SPECIFICATIONS
Dimensions
Outer Diameter (OD)
1.97 in (50 mm)
Height (H1)
0.87 in (22 mm)
Thread (TH)
M10 x 1.5
Plate Thickness (PT)
0.1 in (2.5 mm)
Stud Length (LS)
1.77 in (45 mm)
Performance Specifications
Shore Hardness
70A (+/- 5)
Max Axial Load
7.19 lb (32 N)
Additional Information
Geometry
Cylindrical
Rubber Material
Nitrile
Metal Material
Stainless Steel
Metallic Body Finish
Bright
Country of Origin
Germany
Weight (lbs)
0.220000
UPC
634529364451
Tariff Code
4016.99.6000
UNSPC
Code used to identify products to standardize nomenclature around the world.
31162804
Product Notes
Note 1
Performance ratings are for guidance only. The user must determine suitability for a particular application.
