Mountable shaft collars with face holes are designed to mate directly with components such as sprockets, pulleys, and metallic plates. Ruland manufactures them with drilled holes for mounting flexibility or threaded holes for the most secure connection between the collar and mated component. They are offered in steel, aluminum, and 303 stainless steel in bore sizes ranging from 3/8” to 2” and 10mm to 50mm.
Clamp style universal joints improve over set screw style because they do not mar the shaft, offer infinite adjustability, and can be used on all shaft types. Ruland is the only North American supplier of clamp style universal joints and manufactures the clamp feature, bores, and keyways in our advanced manufacturing facility in Marlborough, MA USA. They are available in sizes from 1/4" to 1 1/4” in steel for high strength and stainless steel for corrosion resistance.

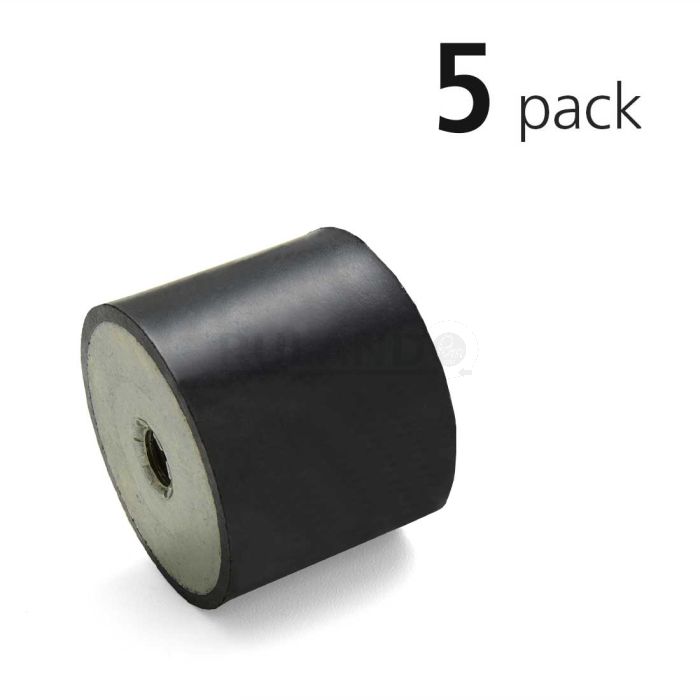

Ruland VMDTC25-25-M6-55-SSNR/5PK is a 5 pack of vibration isolation mounts, each with two tapped holes. An individual isolation mount has a 25mm outside diameter, M6 tapped hole, 6mm tapped hole depth, and 25mm height. Vibration isolation mounts are used to dampen shock loads and reduce noise and wear on industrial equipment such as motors, conveyors, compressors, fans, or pumps which allows for a safer and more pleasant working environment. They are often referred to as a sandwich mount or rubber buffer because they function as a shock or vibration isolator sandwiched between two machine components or surfaces. A vibration isolation mount can be mounted to the system by threading it onto an existing stud on the components. The rubber jackets are made from natural rubber which has good elasticity and is well suited for most industrial equipment. Vibration isolation mounts in this pack have 55 Shore A hardness for a balance of rigidty and shock absorption. Bodies are made from stainless steel allowing for increased corrosion resistance. These vibration isolation mounts are sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.
PRODUCT SPECIFICATIONS
Dimensions
Outer Diameter (OD)
0.98 in (25 mm)
Height (H1)
0.98 in (25 mm)
Thread (TH)
M6 x 1.0
Plate Thickness (PT)
0.08 in (2 mm)
Tapped Hole Depth (LT)
0.24 in (6.1 mm)
Performance Specifications
Spring Rate
405.42 lb/in (71 N/mm)
Shore Hardness
55A (+/- 5)
Max Deflection
0.25 in (6.4 mm)
Max Axial Load
98.92 lb (440 N)
Additional Information
Multipack Quantity
5
Geometry
Cylindrical
Rubber Material
Natural Rubber
Metal Material
Stainless Steel
Metallic Body Finish
Bright
Country of Origin
Hungary
Weight (lbs)
0.261500
UPC
634529367087
Tariff Code
4016.99.6000
UNSPC
Code used to identify products to standardize nomenclature around the world.
31162804
Product Notes
Note 1
Performance ratings are for guidance only. The user must determine suitability for a particular application.
