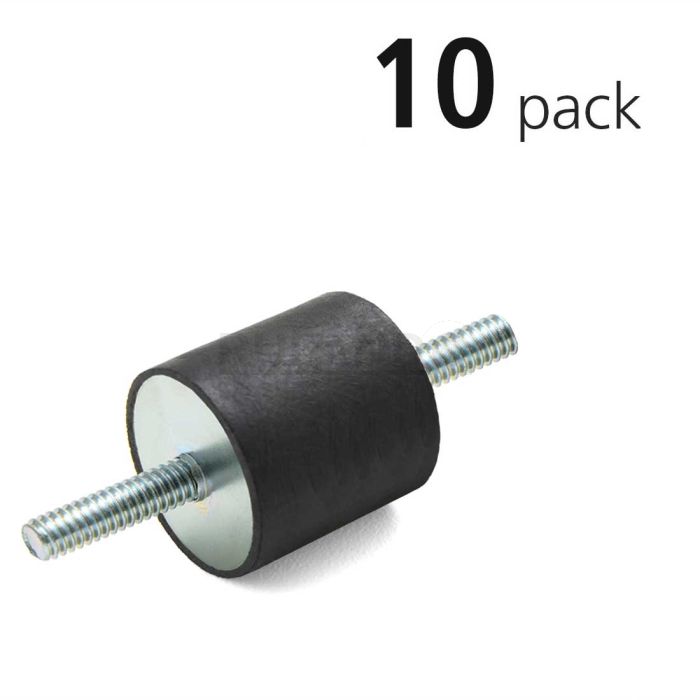

Ruland VMDSC30-40-M8-70-FZNR/10PK is a 10 pack of vibration isolation mounts, each with two threaded studs. An individual isolation mount has a 30mm outside diameter, M8 threaded stud, 20mm stud length, and 40mm height. Vibration isolation mounts are used to dampen shock loads and reduce noise and wear on industrial equipment such as motors, conveyors, compressors, fans, or pumps which allows for a safer and more pleasant working environment. They are often referred to as a sandwich mount or rubber buffer because they function as a shock or vibration isolator sandwiched between two machine components or surfaces. A vibration isolation mount can be mounted to the system by passing it through an unthreaded hole and securing with a nut or threading it directly into tapped holes on the components it will be mounted to. The rubber jackets are made from natural rubber which has good elasticity and is well suited for most industrial equipment. Vibration isolation mounts in this pack have 70 Shore A hardness for the greatest rigidity and load capacity. Bodies are made from zinc plated steel allowing for high strength suitability in most industrial applications. These vibration isolation mounts are sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.
PRODUCT SPECIFICATIONS
Dimensions
Outer Diameter (OD)
1.18 in (30 mm)
Height (H1)
1.57 in (40 mm)
Thread (TH)
M8 x 1.25
Plate Thickness (PT)
0.08 in (2 mm)
Stud Length (LS)
0.79 in (20 mm)
Performance Specifications
Spring Rate
1142.03 lb/in (200 N/mm)
Shore Hardness
70A (+/- 5)
Max Deflection
0.39 in (9.9 mm)
Max Axial Load
449.62 lb (2000 N)
Additional Information
Multipack Quantity
10
Geometry
Cylindrical
Rubber Material
Natural Rubber
Metal Material
Zinc Plated Steel
Metallic Body Finish
Zinc-Plated
Country of Origin
Hungary
Weight (lbs)
1.477100
UPC
634529360743
Tariff Code
4016.99.6000
UNSPC
Code used to identify products to standardize nomenclature around the world.
31162804
Product Notes
Note 1
Performance ratings are for guidance only. The user must determine suitability for a particular application.
