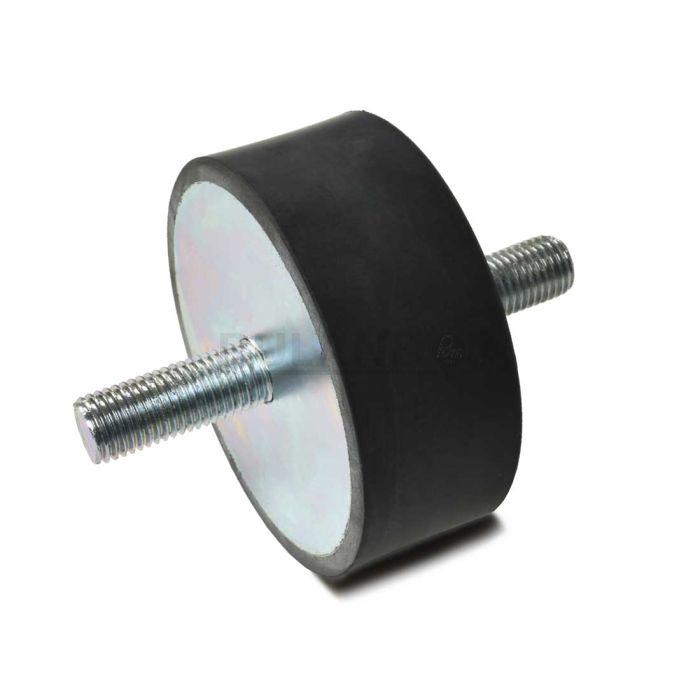

Ruland VMDSC100-40-M16-70-FZNR is a vibration isolation mount with two threaded studs. It has a 100mm outside diameter, M16 threaded stud, 41mm stud lengths, and 40mm height. This vibration isolation mount is used to dampen shock loads and reduce noise and wear on industrial equipment such as motors, conveyors, compressors, fans, or pumps which allows for a safer and more pleasant working environment. It is often referred to as a sandwich mount or rubber buffer because it functions as shock or vibration isolator sandwiched between two machine components or surfaces. VMDSC100-40-M16-70-FZNR can be mounted to the system by passing it through an unthreaded hole and securing with a nut or threading it directly into tapped holes on the components it will be mounted to. The rubber jacket is made from natural rubber which has good elasticity and is well suited for most industrial equipment. It has 70 Shore A hardness for the greatest rigidity and load capacity. The zinc plated steel body allows for high strength and is suitable for most industrial applications. VMDSC100-40-M16-70-FZNR is sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.
PRODUCT SPECIFICATIONS
Dimensions
Style
Double Threaded Stud
Outer Diameter (OD)
3.94 in (100 mm)
Height (H1)
1.57 in (40 mm)
Thread (TH)
M16 x 2.0
Plate Thickness (PT)
0.12 in (3 mm)
Stud Length (LS)
1.61 in (41 mm)
Performance Specifications
Spring Rate
16559.44 lb/in (2900 N/mm)
Shore Hardness
70A (+/- 5)
Max Deflection
0.39 in (9.9 mm)
Max Axial Load
6519.46 lb (29000 N)
Additional Information
Geometry
Cylindrical
Rubber Material
Natural Rubber
Metal Material
Zinc Plated Steel
Metallic Body Finish
Zinc-Plated
Country of Origin
Hungary
Weight (lbs)
1.750700
UPC
634529356951
Tariff Code
4016.99.6000
UNSPC
Code used to identify products to standardize nomenclature around the world.
31162804
Product Notes
Note 1
Performance ratings are for guidance only. The user must determine suitability for a particular application.
