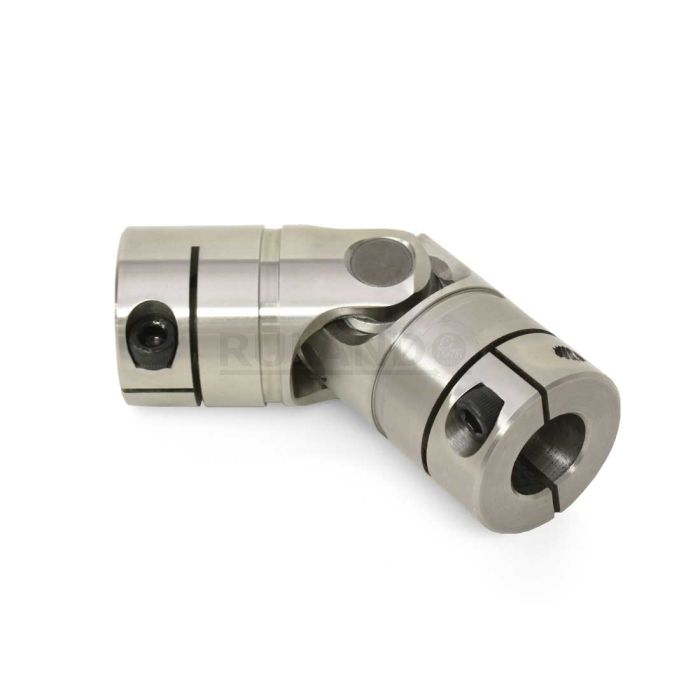

| Dimensions | |||
|---|---|---|---|
|
Bore (B1) Larger inner diameter. Should match nominal shaft diameter. |
1.0000 in |
Small Bore (B2) Smaller inner diameter. Should match nominal shaft diameter. |
1.0000 in |
|
B1 Max Shaft Penetration The maximum depth the shaft can penetrate into Bore B1. |
1.700 in |
B2 Max Shaft Penetration The maximum depth the shaft can penetrate into Bore B2. |
1.700 in |
|
Joint Outer Diameter (OD) |
1.995 in |
Bore Tolerance Variance in finished bore range before installation. |
+0.0010 in / -0.0000 in |
|
Length (L) |
5.500 in |
Yoke Length (LY) |
2.750 in |
|
Hub Depth (LH) |
1.700 in |
||
| Fastening Hardware | |||
|
Forged Clamp Screw Inch or metric socket head cap screw size. |
M8 |
Screw Material |
Alloy Steel with Nypatch® |
|
Screw Finish Surface finish and treatments on supplied hardware. |
Black Oxide |
||
| Performance Specifications | |||
|
Rated Torque Recommended torque based on slippage on the shaft. |
4,300 in-lb |
Max Operating Angle |
45° |
| Additional Information | |||
|
Material Specification |
Alloy Steel |
Manufacturer |
Belden Universal |
|
Country of Origin |
USA |
Weight (lbs) |
3.245730 |
|
Recommended Lubricant |
LUBRIPLATE No. 1200-2 |
Matching Boot Cover |
|
|
UPC |
63452937907 |
Tariff Code |
8483.60.4000 |
|
UNSPC Code used to identify products to standardize nomenclature around the world. |
25173810 |
||
| Product Notes | |||
|
Note 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
|
|
