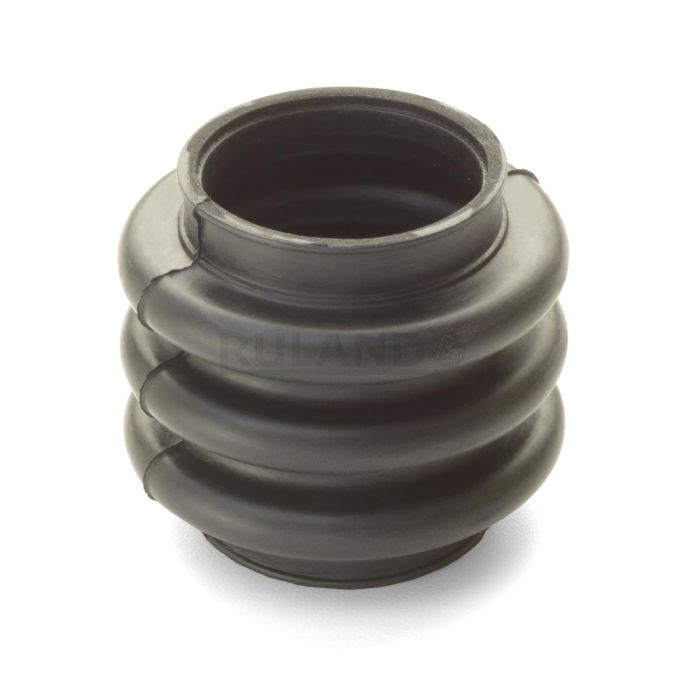

Ruland UBOOT20/32-NI-KIT is a Nitrile boot cover kit for universal joints with an OD of 1.245" or 31.62mm. This boot cover protects the universal joint from unwanted contaminants such as dust and can be packed with grease for lubrication retention. It comes with zip ties that seat into grooves on each yoke ensuring a tight seal. UBOOT20/32-NI-KIT is made from Nitrile for durability and abrasion resistance that helps protect the boot from being damaged and grease leaking out or contaminants entering the joint. Nitrile also has high resistance to petroleum-based oils and fuels, silicone greases, hydraulic fluids, water, and alcohol which are commonly present in operating environments where this universal joint is used. It is designed to fit with single and double universal joints beginning with US20, USSK20, UD20, UDSK20, MUS32, and MUSSK32.
PRODUCT SPECIFICATIONS
Dimensions
Boot Outer Diameter
1.88 in (47.8 mm)
Length (L)
2.090 in (53.1mm)
Bellows
Triple
Additional Information
Material Specification
Nitrile
Manufacturer
Belden Universal
Country of Origin
USA
Weight (lbs)
0.036000
UPC
634529289372
Tariff Code
8483.60.4000
UNSPC
Code used to identify products to standardize nomenclature around the world.
25173810
Product Notes
Note 1
Performance ratings are for guidance only. The user must determine suitability for a particular application.
