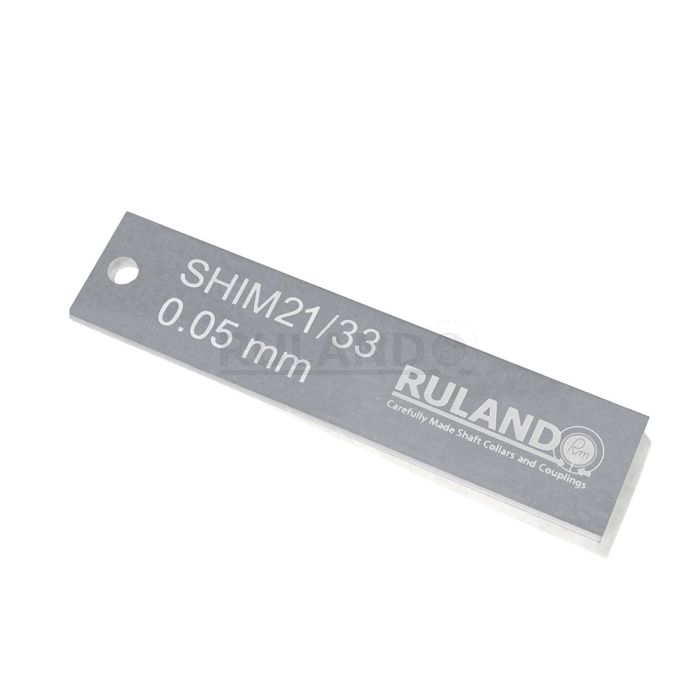

SHIM21/33-A-KIT is a pack of aluminum shims designed to aid in the installation of Ruland manufactured zero-backlash jaw and oldham couplings. It comes with 32 layers that can be peeled off with a knife or other sharp object. Each layer is 1.813" (46.01mm) long, 0.378" (9.6mm) wide, and .002" (.05mm) thick and made of 5052 aluminum for corrosion resistance, rigidity, and durability. It is used during the installation of Ruland zero-backlash jaw and oldham couplings with an outer diameter identifier of 21/33. SHIM21/33-A-KIT ensures proper spacing between the hubs and insert allowing the coupling to reach its full misalignment capabilities. The shim is simply slid into the space between the hub and insert while the user is tightening coupling hardware to its recommended seating torque and then removed once assembly is complete. SHIM21/33-A-KIT is manufactured by Georg Martin GmbH in Germany and RoHS3 and REACH compliant.
PRODUCT SPECIFICATIONS
Dimensions
Length (L)
1.813 in (46.1 mm)
Width (W)
0.378 in (9.60 mm)
Layer Thickness
0.002 in (0.05 mm)
Layer Thickness Tolerance
+0.0003/-0.0000 mm
Pack Thickness
0.063 in (1.6 mm)
Additional Information
Number of Layers
32
Weight (lbs)
0.004200
Layers Needed for Jaw Couplings
15
Layers Needed for Oldham Couplings
3
Material Specification
Aluminum Alloy 5052
Manufacturer
Georg Martin GmbH
Country of Origin
Germany
Tariff Code
7616.99.5120
