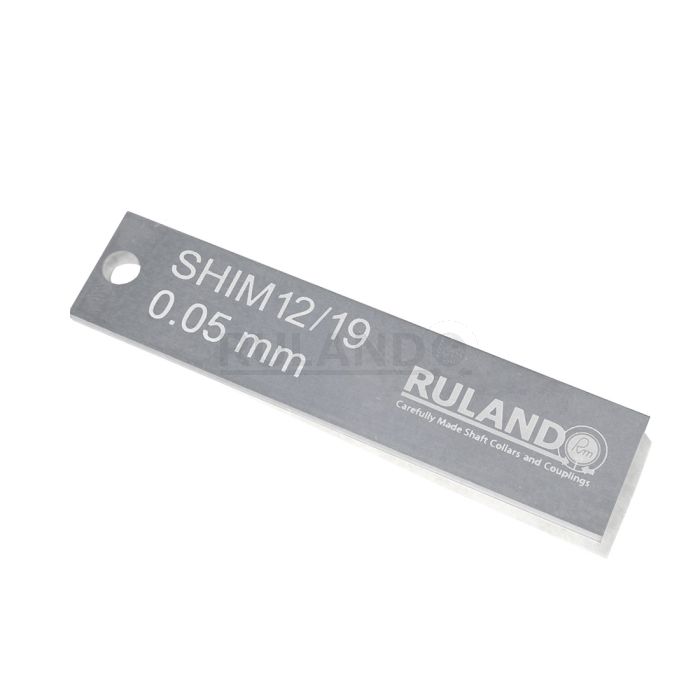

Ruland SHIM12/19-A-KIT, Pack of Shims for Jaw & Oldham Couplings, Aluminum, 32 Layers, 1.250" (31.8mm) Length, 0.210" (5.3mm) Width

PRODUCT SPECIFICATIONS

SHIM12/19-A-KIT is a pack of aluminum shims designed to aid in the installation of Ruland manufactured zero-backlash jaw and oldham couplings. It comes with 32 layers that can be peeled off with a knife or other sharp object. Each layer is 1.250" (31.8mm) long, 0.210" (5.3mm) wide, and .002" (.05mm) thick and made of 5052 aluminum for corrosion resistance, rigidity, and durability. It is used during the installation of Ruland zero-backlash jaw and oldham couplings with an outer diameter identifier of 12/19. SHIM12/19-A-KIT ensures proper spacing between the hubs and insert allowing the coupling to reach its full misalignment capabilities. The shim is simply slid into the space between the hub and insert while the user is tightening coupling hardware to its recommended seating torque and then removed once assembly is complete. SHIM12/19-A-KIT is manufactured by Georg Martin GmbH in Germany and RoHS3 and REACH compliant.

PRODUCT SPECIFICATIONS

Dimensions

Length (L)

1.250 in (31.8 mm)

Width (W)

0.210 in (5.33 mm)

Layer Thickness

0.002 in (0.05 mm)

Layer Thickness Tolerance

+0.0003/-0.0000 mm

Pack Thickness

0.063 in (1.6 mm)

Additional Information

Number of Layers

32

Weight (lbs)

0.001600

Layers Needed for Jaw Couplings

10

Layers Needed for Oldham Couplings

2

Material Specification

Aluminum Alloy 5052

Manufacturer

Georg Martin GmbH

Country of Origin

Germany

Tariff Code

7616.99.5120

UNSPC Code used to identify products to standardize nomenclature around the world.

31231404

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant

REACH

Compliant
