Set Screw Rigid Couplings With Keyway, Inch

Features

  • Precision honed bore on straight bore couplings
  • Clamp style couplings available
  • Additional sizes available
  • RoHS3 and REACH Compliant
  • Maximum speed: 4,000 RPM
  • Bore tolerance: +.002”/+.0005”
  • Temperature Range (Deg. F)
    Steel: -40° to 350°
    Stainless: -40° to 350°

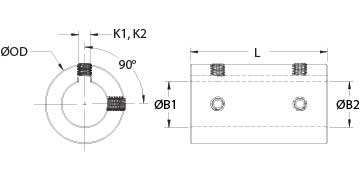

Line DrawingLine Drawing

How to Specify

Part numbers are in the following format with numbers representing sixteenths of an inch:

Part Number Identification

Products

View as Grid Table

24 Items

Set Descending Direction
  1. Ruland SCC-10-10-F, Set Screw Rigid Coupling
    SCC-10-10-F
    Ruland SCC-10-10-F, 5/8" x 5/8" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 1 5/16" OD, 2" Length
  2. Ruland SCC-10-10-SS, Set Screw Rigid Coupling
    SCC-10-10-SS
    Ruland SCC-10-10-SS, 5/8" x 5/8" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 1 5/16" OD, 2" Length
  3. Ruland SCC-12-12-F, Set Screw Rigid Coupling
    SCC-12-12-F
    Ruland SCC-12-12-F, 3/4" x 3/4" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 1 1/2" OD, 2 1/4" Length
  4. Ruland SCC-12-12-SS, Set Screw Rigid Coupling
    SCC-12-12-SS
    Ruland SCC-12-12-SS, 3/4" x 3/4" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 1 1/2" OD, 2 1/4" Length
  5. Ruland SCC-14-14-F, Set Screw Rigid Coupling
    SCC-14-14-F
    Ruland SCC-14-14-F, 7/8" x 7/8" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 1 5/8" OD, 2 1/2" Length
  6. Ruland SCC-14-14-SS, Set Screw Rigid Coupling
    SCC-14-14-SS
    Ruland SCC-14-14-SS, 7/8" x 7/8" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 1 5/8" OD, 2 1/2" Length
  7. Ruland SCC-16-16-F, Set Screw Rigid Coupling
    SCC-16-16-F
    Ruland SCC-16-16-F, 1" x 1" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 1 3/4" OD, 3" Length
  8. Ruland SCC-16-16-SS, Set Screw Rigid Coupling
    SCC-16-16-SS
    Ruland SCC-16-16-SS, 1" x 1" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 1 3/4" OD, 3" Length
  9. Ruland SCC-18-18-F, Set Screw Rigid Coupling
    SCC-18-18-F
    Ruland SCC-18-18-F, 1-1/8" x 1-1/8" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 1 7/8" OD, 3 1/8" Length
  10. Ruland SCC-18-18-SS, Set Screw Rigid Coupling
    SCC-18-18-SS
    Ruland SCC-18-18-SS, 1-1/8" x 1-1/8" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 1 7/8" OD, 3 1/8" Length
  11. Ruland SCC-20-20-F, Set Screw Rigid Coupling
    SCC-20-20-F
    Ruland SCC-20-20-F, 1-1/4" x 1-1/4" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 2 1/16" OD, 3 1/4" Length
  12. Ruland SCC-20-20-SS, Set Screw Rigid Coupling
    SCC-20-20-SS
    Ruland SCC-20-20-SS, 1-1/4" x 1-1/4" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 2 1/16" OD, 3 1/4" Length
  13. Ruland SCC-22-22-F, Set Screw Rigid Coupling
    SCC-22-22-F
    Ruland SCC-22-22-F, 1-3/8" x 1-3/8" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 2 1/2" OD, 3 5/8" Length
  14. Ruland SCC-22-22-SS, Set Screw Rigid Coupling
    SCC-22-22-SS
    Ruland SCC-22-22-SS, 1-3/8" x 1-3/8" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 2 1/2" OD, 3 5/8" Length
  15. Ruland SCC-24-24-F, Set Screw Rigid Coupling
    SCC-24-24-F
    Ruland SCC-24-24-F, 1-1/2" x 1-1/2" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 2 5/8" OD, 3 7/8" Length
  16. Ruland SCC-24-24-SS, Set Screw Rigid Coupling
    SCC-24-24-SS
    Ruland SCC-24-24-SS, 1-1/2" x 1-1/2" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 2 5/8" OD, 3 7/8" Length
  17. Ruland SCC-28-28-F, Set Screw Rigid Coupling
    SCC-28-28-F
    Ruland SCC-28-28-F, 1-3/4" x 1-3/4" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 3 1/8" OD, 4 1/2" Length
  18. Ruland SCC-28-28-SS, Set Screw Rigid Coupling
    SCC-28-28-SS
    Ruland SCC-28-28-SS, 1-3/4" x 1-3/4" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 3 1/8" OD, 4 1/2" Length
  19. Ruland SCC-32-32-F, Set Screw Rigid Coupling
    SCC-32-32-F
    Ruland SCC-32-32-F, 2" x 2" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 3 3/8" OD, 4 7/8" Length
  20. Ruland SCC-32-32-SS, Set Screw Rigid Coupling
    SCC-32-32-SS
    Ruland SCC-32-32-SS, 2" x 2" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 3 3/8" OD, 4 7/8" Length
  21. Ruland SCC-6-6-F, Set Screw Rigid Coupling
    SCC-6-6-F
    Ruland SCC-6-6-F, 3/8" x 3/8" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 7/8" OD, 1 3/8" Length
  22. Ruland SCC-6-6-SS, Set Screw Rigid Coupling
    SCC-6-6-SS
    Ruland SCC-6-6-SS, 3/8" x 3/8" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 7/8" OD, 1 3/8" Length
  23. Ruland SCC-8-8-F, Set Screw Rigid Coupling
    SCC-8-8-F
    Ruland SCC-8-8-F, 1/2" x 1/2" Rigid Coupling, Black Oxide Steel, Set Screw Style with Keyway, 1 1/8" OD, 1 3/4" Length
  24. Ruland SCC-8-8-SS, Set Screw Rigid Coupling
    SCC-8-8-SS
    Ruland SCC-8-8-SS, 1/2" x 1/2" Rigid Coupling, 303 Stainless Steel, Set Screw Style with Keyway, 1 1/8" OD, 1 3/4" Length
