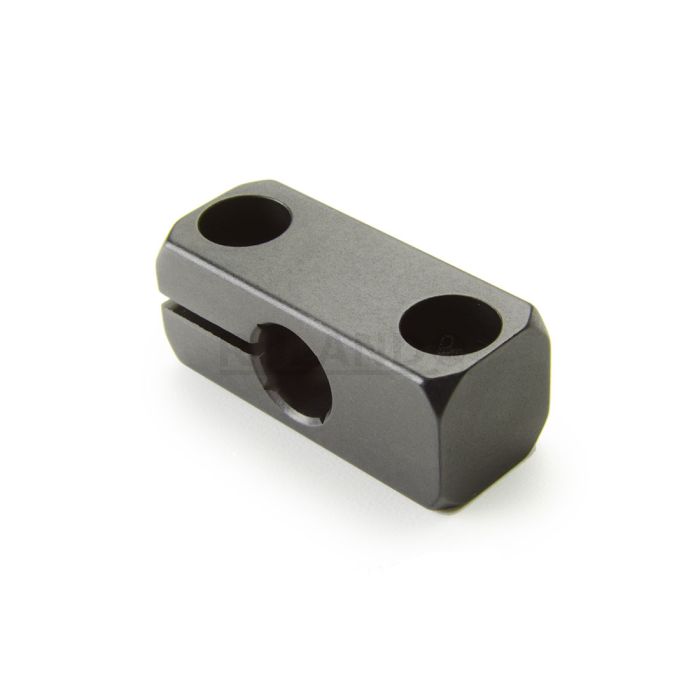

Ruland MT8-CC1W-M4-AN is a one-way base connector with a 31.5mm base diameter, 8mm round thru holes, and M4 clamp screw. It is designed to fit with Ruland tubes that begin with M4. MT8-CC1W-M4-AN is aluminum with a black anodized finish and screws are 304 stainless steel for added corrosion resistance when compared to unplated types. This one-way base connector is typically used as a base in support structures for mounting sensors, screens, reflectors, plexiglass machine guards, and other industrial components. It can be permanently installed on extruded aluminum frames, sheet metal, and other surfaces using M4 hardware or the user can opt for portability by using MAGNET-43-22 magnetic base. MT8-CC1W-M4-AN is a cost effective option when compared to two-way bases for users that only require a tube in one orientation. MT8-ALK-M4-16 adjustable clamping handles can be used in place of standard hardware if rapid fine repositioning of the tube is required. MT8-CC1W-M4-AN is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.
PRODUCT SPECIFICATIONS
Dimensions
Thru Hole Diameter B
8 mm
Thru Hole Tolerance
+0.09/-0 mm
Center To Center LC
22 mm
Width & Height W1
14 mm
Overall Length L1
31.5 mm
Mounting Screw SC
M4
Fastening Hardware
Clamp Screw CL
M4
Screw Length L2
10 mm
Additional Information
Weight (lbs)
0.024300
Material Specification
Anodized Aluminum
Manufacturer
JW Winco/ Otto Ganter
UPC
634529231364
Country of Origin
Germany
Tariff Code
7609.00.0000
