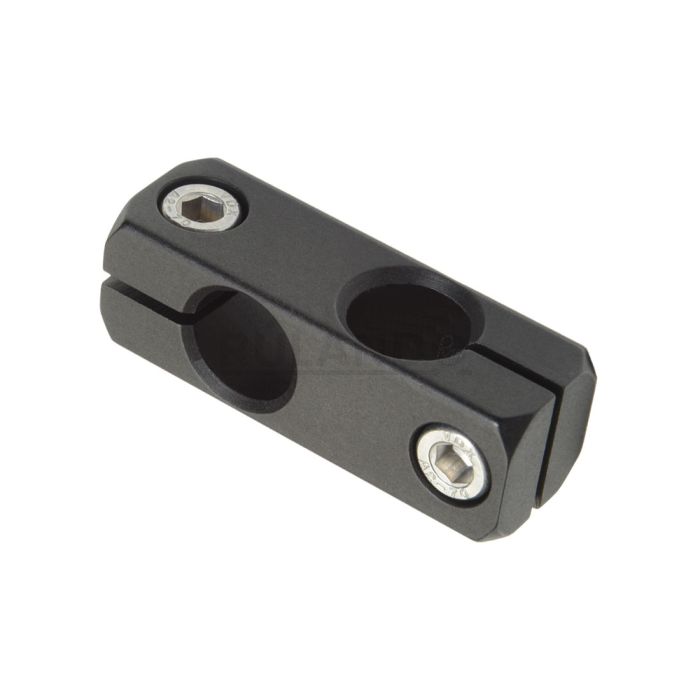

| Dimensions | |||
|---|---|---|---|
|
Thru Hole 1 Diameter B1 |
8 mm |
Thru Hole 2 Diameter B2 |
8 mm |
|
Thru Hole Tolerance |
+0.09/-0 mm |
Thru Hole 2 Tolerance |
+0.09/-0 mm |
|
Overall Length L1 |
37 mm |
Edge To Center L2 |
13.5 mm |
|
Center To Center LC |
10 mm |
Width & Height W1 |
14 mm |
| Fastening Hardware | |||
|
Clamp Screw CL |
M4 |
||
| Additional Information | |||
|
Weight (lbs) |
0.035300 |
Material Specification |
Anodized Aluminum |
|
Manufacturer |
JW Winco/ Otto Ganter |
UPC |
634529231562 |
|
Country of Origin |
Germany |
Tariff Code |
7609.00.0000 |
| Product Notes | |||
|
Note 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
|
|
