MT16/16-CC90-A

$28.53
Quantity Price (USD)
1 $28.53
10 $26.25
25 $23.77
50 $21.40
100 Request Quote
In stock
Registered users receive a 5% discount
Only 6 left

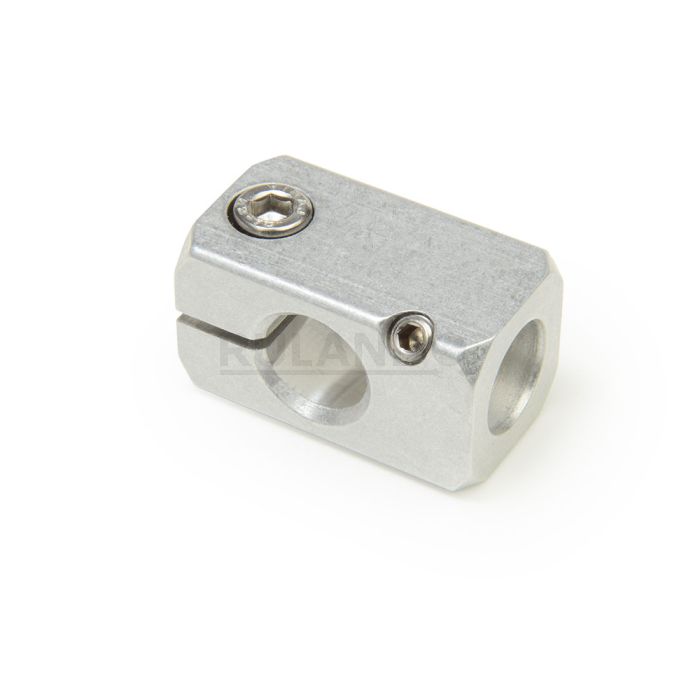

Ruland T-Connector Mini-Clamp, Thru Holes 16mmx16mm, Length 45.0mm, Aluminum

PRODUCT SPECIFICATIONS

Ruland MT16/16-CC90-A is a 90 degree connector with a thru hole for 16mm round tube, blind hole for 16mm round tube, and 45.0mm overall length. It is designed to fit on Ruland tubes and flange bolt bases that begin with MT16. MT16/16-CC90-A is aluminum and screws are 304 stainless steel for use in most industrial applications. This 90 degree connector clamp is commonly used to support tubes for mounting sensors, screens, reflectors, plexiglass machine guards, and other industrial components. The blind hole reduces complication in assembly and limits the possibility of a mistake being made by inserting a tube too far into the connector for it to function properly. The thru hole allows designers flexibility to reposition the clamp or tube as needed. MT15:16:20-ALK-M6-25 adjustable clamping lever can be used in place of standard clamp hardware for rapid repositioning of the tube or connector without the need for tools. MT16/16-CC90-A is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUCT SPECIFICATIONS

Dimensions

Thru Hole 1 Diameter B1

16 mm

Thru Hole 2 Diameter B2

16 mm

Thru Hole Tolerance

+0.11/-0 mm

Body Length L1

45 mm

Edge To Center L2

20 mm

Screw To Edge LS

11 mm

Hole Depth T

16 mm

Width & Height W1

25 mm

Fastening Hardware

Clamp Screw CL

M6

Set Screw SS

M6

Additional Information

Weight (lbs)

0.121800

Material Specification

Aluminum

Manufacturer

JW Winco/ Otto Ganter

UPC

634529231975

Country of Origin

Germany

Tariff Code

7609.00.0000

UNSPC Code used to identify products to standardize nomenclature around the world.

31162908

Product Notes

Note 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop 65 Required for the US State of California only.

WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant
