MT12-CBFB-39-FZ

$39.37
Quantity Price (USD)
1 $39.37
10 $36.22
25 $32.80
50 $29.53
100 Request Quote
In stock
Registered users receive a 5% discount
Only 1 left

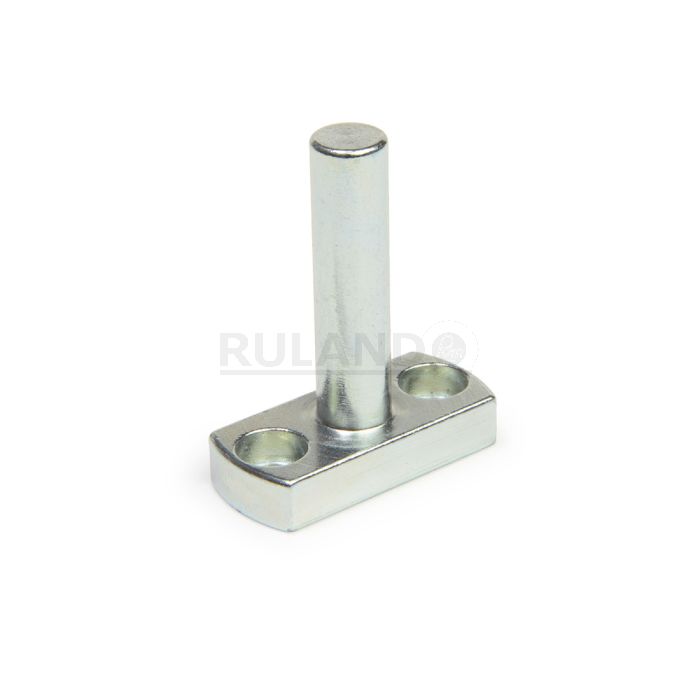

Ruland Flanged Bolt Base, Bolt Diameter 12mm, Bolt Length 39mm, Base Width 16mm, Zinc Plated Steel

PRODUCT SPECIFICATIONS

Ruland MT12-CBFB-39-FZ is a flanged bolt base with a 16mm base with, 12mm bolt diameter, and 39mm bolt length. It is designed to fit with Ruland clamps and connectors that begin with MT12. This part is steel with a zinc plated finish for durability and corrosion resistance. MT12-CBFB-39-FZ has a short rod integrated into the base which allows for a sturdier connection and increased holding capacity when compared to other bases that require the use of long tubes. It is a cost effective alternative to buying a base and tube(s) due to the steel construction, short rod length, and single piece design. MT12-CBFB-39-FZ can be permanently installed on extruded aluminum frames, sheet metal, and other surfaces using M5 hardware or the user can opt for portability by using MAGNET-43-27 magnetic base. It is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUCT SPECIFICATIONS

Dimension

Bolt Diameter DB

12 mm

Bolt Tolerance

+0.043/-0 mm

Base Width WB

16 mm

Base Length L1

38 mm

Bolt Length LB

39 mm

Base Height H1

8 mm

Center To Center LC

27 mm

Counterbore Hole CH

M5

Counterbore to Base CB

2.5 mm

Additional Information

Material Specification

Zinc Plated Steel

Manufacturer

JW Winco/ Otto Ganter

Country of Origin

Germany

Weight (lbs)

0.141100

UPC

634529232071

Tariff Code

7609.00.0000

UNSPC Code used to identify products to standardize nomenclature around the world.

31162908

Product Notes

Note 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop 65 Required for the US State of California only.

WARNING This product can expose you to the chemical Lead, known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant
