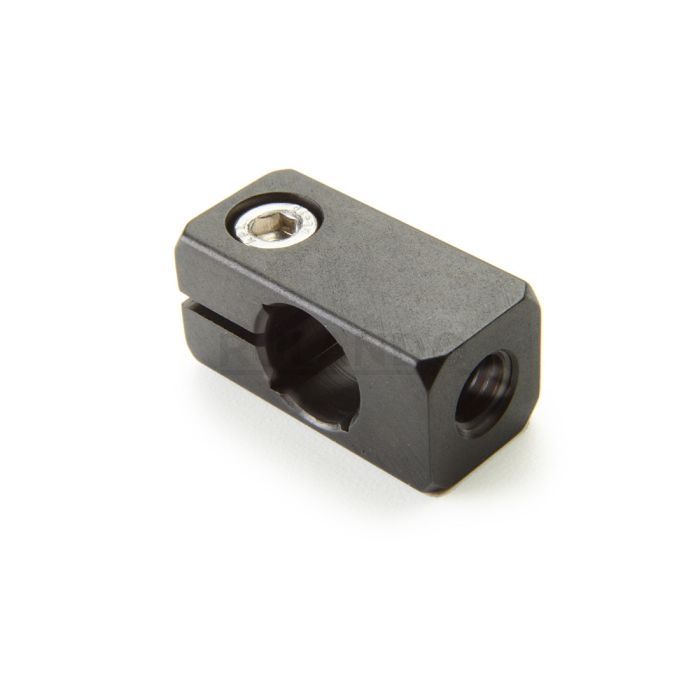

| Dimensions | |||
|---|---|---|---|
|
Thru Hole Diameter B |
10 mm |
Thru Hole Tolerance |
+0.09/-0 mm |
|
Square Thru Hole S The width/height of compatible square tubes. |
8 mm |
Thread (TH) |
M5 |
|
Thread Depth LT |
8 mm |
Edge To Center L2 |
17 mm |
|
Width & Height W1 |
16 mm |
Overall Length L1 |
30 mm |
| Fastening Hardware | |||
|
Clamp Screw CL |
M5 |
||
| Additional Information | |||
|
Weight (lbs) |
0.035300 |
Material Specification |
Anodized Aluminum |
|
Manufacturer |
JW Winco/ Otto Ganter |
UPC |
634529230602 |
|
Country of Origin |
Germany |
Tariff Code |
7609.00.0000 |
|
UNSPC Code used to identify products to standardize nomenclature around the world. |
31162908 |
||
| Product Notes | |||
|
Note 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
|
|
