IPNW-10-12-5/8X11-F

$25.52
Quantity Price (USD)
1 $25.52
100 $23.48
250 $21.26
500 $19.14
1000 Request Quote
In stock
Registered users receive a 5% discount
Only 3 left

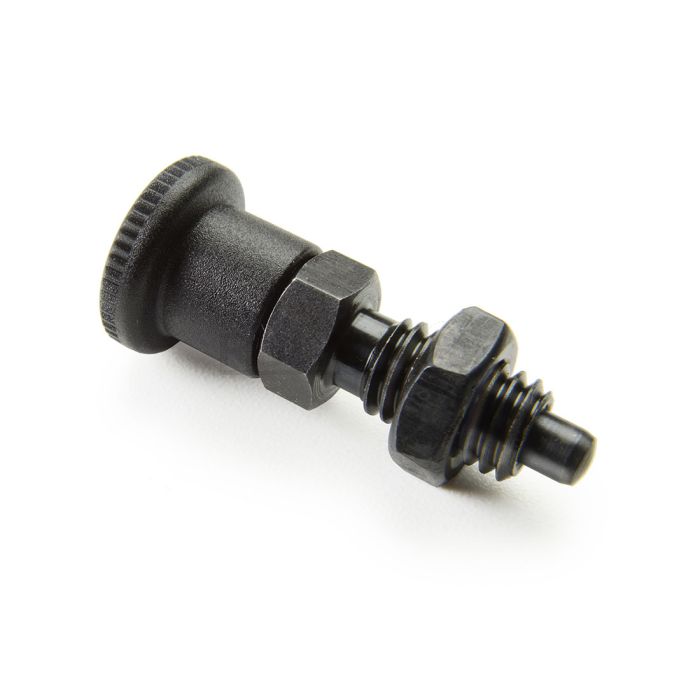

Ruland Indexing Plunger, With Locknut, Thread 5/8x11, Pin Diameter 10mm, Knob Diameter 28mm, L 58mm, Steel

Explore Similar Products

PRODUCT SPECIFICATIONS

Ruland IPNW-10-12-5/8X11-F is a steel indexing plunger with a locknut. It has a 10mm pin diameter, 12mm pin length, 5/8x11 thread, 26mm tapped thread length, 28mm knob diameter, and 58mm overall length. This indexing plunger is commonly used for height adjustments, rotational or swivel limits, and as a quick way to detach a movable component from a stationary one. The threaded body allows it to be installed directly onto a machine or component. To operate, the user simply retracts the knob pulling the pin into the body of the plunger allowing a previously fixed component to be moved. Once the component is in the desired position, the user reinserts the pin into a mating hole in the stationary component. The locknut allows the user to provide an axial stop ensuring precise positioning of the indexing plunger at all times. The knob of IPNW-10-12-5/8X11-F partially encloses the top of the plunger body, allowing less debris to enter the mechanism, which is critical when used in environments that commonly have metal chips and other contaminants. It is manufactured by Otto Ganter, stocked by Ruland, and RoHS3 compliant.

PRODUCT SPECIFICATIONS

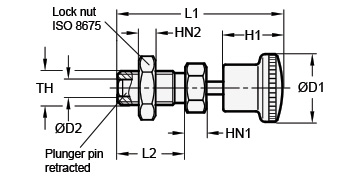

Dimensions

Overall Length L1

58 mm

Body Length L2

26 mm

Thread (TH)

5/8 in - 11 TPI

Knob Height H1

24 mm

Knob Diameter D1

28 mm

Pin Diameter D2

10 mm

Pin Length L3

12 mm

Nut Height HN1

8 mm

Nut 2 Height HN2

8 mm

Hex Nut Size

17 mm

Additional Information

Initial Spring Load The axial load output by the spring when not in use.

9.5 N

End Spring Load The axial load output by the spring when in use.

38 N

Plunger Pin Tolerance The manufacturing tolerance of the end pin.

-0.02/-0.05 mm

Hole Tolerance

+0.015/-0 mm

Weight (lbs)

0.224900

Temperature Minimum and maximum operating temperature. Operating temperature includes ambient temperature plus or minus factors such as system heat generated during operation, washdown, vacuum, etc...

-40°F to 230°F (-40°C to 110°C)

Manufacturer

JW Winco/ Otto Ganter

UPC

634529229590

Country of Origin

Germany

Tariff Code

7318.29.0000

UNSPC Code used to identify products to standardize nomenclature around the world.

31162809

Product Notes

Note 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop 65 Required for the US State of California only.

WARNING This product can expose you to chemicals including Soots and Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
