IPLW-5-5-M10X1-F

$21.97
Quantity Price (USD)
1 $21.97
100 $20.21
250 $18.30
500 $16.48
1000 Request Quote
In stock
Registered users receive a 5% discount
Only 5 left

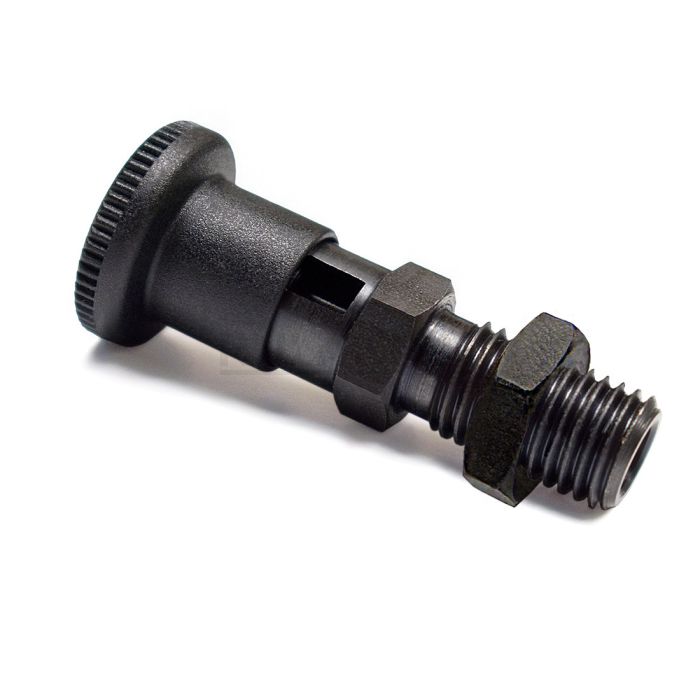

Ruland Indexing Plunger, Lock-Out, With Locknut, Thread M10x1.0, Pin Diameter 5mm, Knob Diameter 19mm, L 40mm, Steel

Explore Similar Products

PRODUCT SPECIFICATIONS

Ruland IPLW-5-5-M10X1-F is a steel indexing plunger with lock-out and a locknut. It has a 5mm pin diameter, 5mm pin length, M10x1.0 thread, 18mm tapped thread length, 19mm knob diameter, and 40mm overall length. This indexing plunger is commonly used for height adjustments, rotational or swivel limits, and as a quick way to detach a movable component from a stationary one. The threaded body allows it to be installed directly onto a machine or component. To operate, the user simply retracts the knob pulling the pin into the body of the plunger allowing a previously fixed component to be moved. The lockout feature of IPLW-5-5-M10X1-F allows the user to turn the knob 90 degrees once the pin has been retracted to lock the pin in-place until the component is in the desired location. While locked out, a notch in the plunger holds the knob in place preventing it from slipping into the unlocked position due to system vibration or a user accidentally bumping the knob. Once the desired location is reached, the user turns the knob 90 degrees to reactivate the locking mechanism to fix the component in-place. The locknut allows the user to provide an axial stop ensuring precise positioning of the indexing plunger at all times. The knob of IPLW-5-5-M10X1-F partially encloses the top of the plunger body, allowing less debris to enter the mechanism, which is critical when used in environments that commonly have metal chips and other contaminants. It is manufactured by Otto Ganter, stocked by Ruland, and RoHS3 compliant.

PRODUCT SPECIFICATIONS

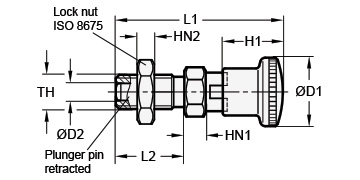

Dimensions

Overall Length L1

40 mm

Body Length L2

18 mm

Thread (TH)

M10X1.0

Knob Height H1

16 mm

Knob Diameter D1

19 mm

Pin Diameter D2

5 mm

Pin Length L3

5 mm

Nut Height HN1

6 mm

Nut 2 Height HN2

5 mm

Hex Nut Size

12 mm

Additional Information

Initial Spring Load The axial load output by the spring when not in use.

5 N

End Spring Load The axial load output by the spring when in use.

15 N

Plunger Pin Tolerance The manufacturing tolerance of the end pin.

-0.02/-0.05 mm

Hole Tolerance

+0.012/-0 mm

Weight (lbs)

0.057300

Temperature Minimum and maximum operating temperature. Operating temperature includes ambient temperature plus or minus factors such as system heat generated during operation, washdown, vacuum, etc...

-40°F to 230°F (-40°C to 110°C)

Manufacturer

JW Winco/ Otto Ganter

UPC

634529229576

Country of Origin

Germany

Tariff Code

7318.29.0000

UNSPC Code used to identify products to standardize nomenclature around the world.

31162809

Product Notes

Note 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop 65 Required for the US State of California only.

WARNING This product can expose you to chemicals including Soots and Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant
