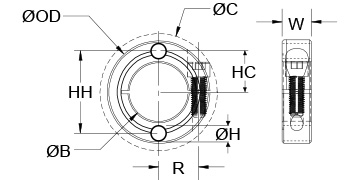

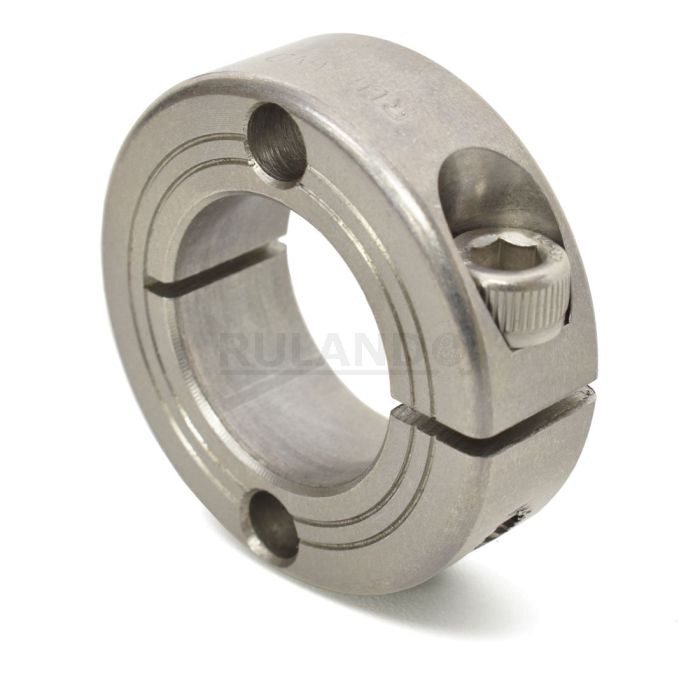

Dimension | |||
---|---|---|---|
Bore (B1) Larger inner diameter. Should match nominal shaft diameter. |
0.6250 in |
Bore Tolerance Variance in finished bore range before installation. |
+0.0020 in / +0.0005 in |
Outer Diameter (OD) |
34 mm |
Clearance Diameter (C) MAX Minimum diameter required to avoid interference with hardware. |
39.3 mm |
Width (W) |
13 mm |
Width Tolerance |
+0.076 mm / -0.254 mm |
Hole to Center (HC) |
12.47 mm |
Hole to Hole (HH) |
24.94 mm |
Hole Diameter (H) |
5.31 mm |
Recommended Shaft Tolerance Acceptable variance in nominal shaft diameter before performance loss. |
+0.0000 in / -0.0005 in |
Fastening Hardware | |||
Forged Clamp Screw Inch or metric socket head cap screw size. |
M5 |
Screw Material |
18-8 300 Series Stainless Steel |
Hex Wrench Size Wrench size that fits the screw head to tighten or loosen the screw. |
4.0 mm |
Screw Finish Surface finish and treatments on supplied hardware. |
Bright |
Seating Torque Torque required to install supplied hardware. Use torque wrench for accurate seating torque. |
5.4 Nm |
Screw Location (R) |
12.50 mm |
Number of Screws |
1 ea |
||
Recommended Installation Tools | |||
Torque Wrench This torque wrench and bit combo is recommended to ensure proper installation. A torque wrench prevents the screw from being over torqued which can lead to product failure. |
Recommended Hex Key This hex key set has the appropriate hex key for product installation. Trained and experienced assemblers can use a hex key in place of a torque wrench. |
||
Additional Information | |||
Material Specification |
Type 303 Austenitic, Non-Magnetic Bar |
Temperature Minimum and maximum operating temperature. Operating temperature includes ambient temperature plus or minus factors such as system heat generated during operation, washdown, vacuum, etc... |
-40°F to 350°F (-40°C to 176°C) |
Bright, No Plating |
Manufacturer |
Ruland Manufacturing |
|
Country of Origin |
USA |
Weight (lbs) |
0.142127 |
UPC |
63452937614 |
Tariff Code |
8483.60.8000 |
UNSPC Code used to identify products to standardize nomenclature around the world. |
31162811 |
||
Product Notes | |||
Note 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
|
