CPRS12-6-A

$29.79 ea
Quantity Price (USD)
1 $29.79 ea
20 $17.87 ea
50 $14.90 ea
100 $13.41 ea
200 Request Quote
In stock
Registered users receive a 5% discount
Only 10 left

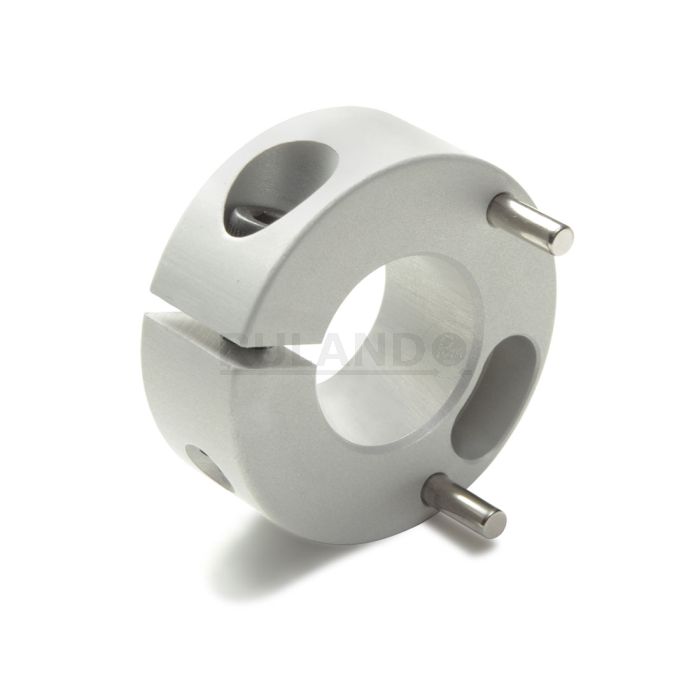

Ruland CPRS12-6-A, Controlflex Coupling Hub, Aluminum, Clamp Style, 0.748" OD, 0.630" Length

PRODUCT SPECIFICATIONS

Ruland CPRS12-6-A is a Controlflex coupling hub with a 0.375" bore, 0.748" OD, and 0.220" length. It is a component in a three-piece design consisting of two aluminum hubs mounted by pins to one acetal insert called frogs creating a lightweight low inertia coupling capable of speeds up to 25,000 RPM. This three-piece design allows for a highly customizable coupling that easily combines clamp hubs with inch, metric, keyed, and keyless bores. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. Controlflex couplings are designed for flexibility and an excellent fit for encoders, tachometers, and light duty stepper servo positioning applications. CPRS12-6-A is RoHS2 and REACH compliant.

PRODUCT SPECIFICATIONS

Dimensions

Bore B

0.375 in

Outer Diameter OD

0.748 in

Bore Tolerance

+.002 in / +.001 in

Hub Width LH

0.220 in

Length L

0.630 in

Fastening Hardware

Forged Clamp Screw

#2-56

Screw Material

Alloy Steel

Hex Wrench Size

5/64 in

Screw Finish

Black Oxide

Seating Torque

0.4 Nm

Screw Location R

6.4 mm

Number of Screws

1 ea

Performance Specifications

Rated Torque

0.3 Nm

Angular Misalignment

1.5°

Peak Torque

0.7 Nm

Torsional Stiffness

16 Nm/rad

Axial Motion

0.3 mm

Parallel Misalignment

0.4 mm

Maximum Speed

25000 RPM

Additional Information

Weight (lbs.)

0.0180

Temperature

-22°F to 175°F
-30°C to 80°C

Material Specification

6082 Aluminum Bar

Finish

Clear Anodized

Finish Specification

Clear Anodized

Manufacturer

Schmidt Kupplung

UPC

63452922369

Country of Origin

Germany

Product Notes

Note 1

Stainless steel hubs are available upon request.

Note 2

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Note 3

Torque ratings for the couplings are based on the physical limitations/failure point of the inserts. Under normal/typical conditions the hubs are capable of holding up to the rated torque of the inserts. In some cases, especially when the smallest standard bores are used or where shafts are undersized, slippage on the shaft is possible below the rated torque. Keyways are available to provide additional torque capacity in the shaft/hub connection when required. Please consult technical support for more assistance.

Prop 65

WARNING This product can expose you to chemicals including Ethylene Thiourea and Nickel (metallic), known to the State of California to cause cancer, and Ethylene Thiourea known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant

REACH

Compliant
