CPFRG23/37-AT

$16.91 ea
Quantity Price (USD)
1 $16.91 ea
10 $10.15 ea
25 $8.46 ea
50 $7.61 ea
100 Request Quote
In stock
Registered users receive a 5% discount

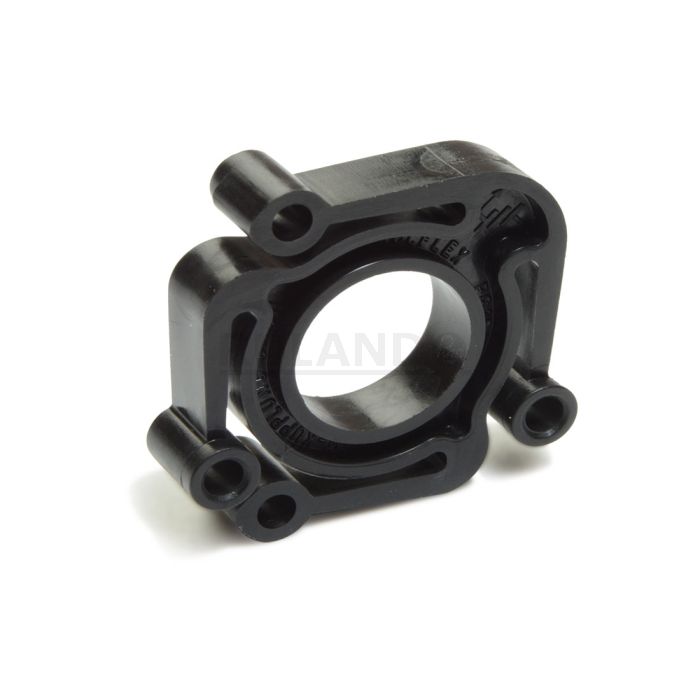

Ruland CPFRG23/37-AT, Controlflex Coupling Frog, Acetal, 1.457in (37.0mm) OD

PRODUCT SPECIFICATIONS

Ruland CPFRG23/37-AT is a Controlflex coupling frog designed to fit hubs that have an OD of 1.457" (37.0mm). It is a component in a three- or four-piece design consisting of two aluminum hubs mounted by pins to one or two acetal inserts called frogs creating a lightweight low inertia coupling capable of speeds up to 15,000 RPM. This multi-piece design allows for a highly customizable coupling that easily combines clamp hubs with inch, metric, keyed, and keyless bores.Controlflex couplings have a balanced design for reduced vibration at high speeds. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. CPFRG23/37-AT is RoHS2 and REACH compliant.

PRODUCT SPECIFICATIONS

Dimensions

Controlflex Insert F

0.563 in / 14.3 mm

Outer Diameter OD

1.457 in, 37.0 mm

Additional Information

Weight (lbs.)

0.0083

Temperature

-22°F to 175°F
-30°C to 80°C

Material Specification

Acetal

Manufacturer

Schmidt Kupplung

UPC

63452922304

Country of Origin

Germany

Product Notes

Prop 65

WARNING This product can expose you to the chemical Formaldehyde, known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant

REACH

Compliant
