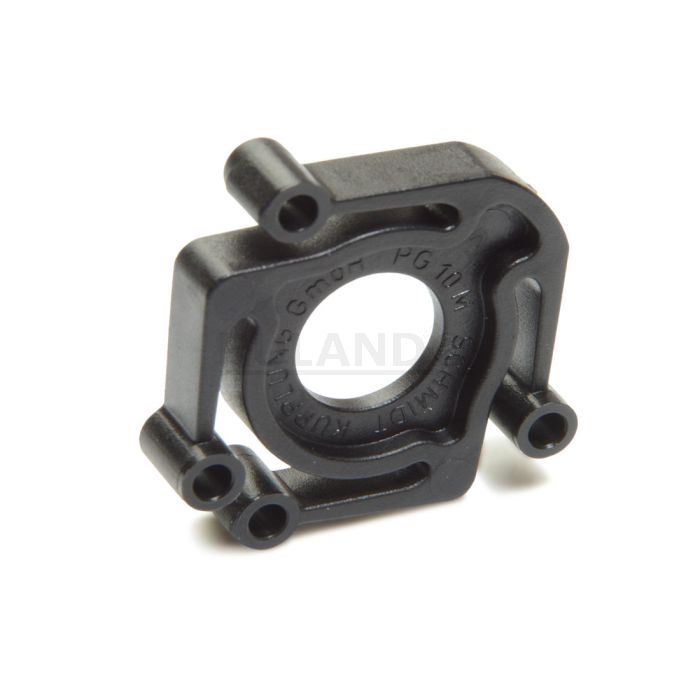

Explore More >> Ruland CPFRG16/25-AT, Controlflex Coupling Frog, Acetal, 0.984in (25.0mm) OD
| Dimensions | |||
|---|---|---|---|
|
Insert Thru Hole F |
0.315 in (8 mm) |
Outer Diameter (OD) |
0.984 in (25.0 mm) |
| Performance Specifications | |||
|
Torque Specifications Torque is dependent on the hub selected. |
Torque ratings vary with hub selection |
Misalignment ratings vary with hub selection |
|
| Additional Information | |||
|
Weight (lbs) |
0.002400 |
Temperature Minimum and maximum operating temperature. Operating temperature includes ambient temperature plus or minus factors such as system heat generated during operation, washdown, vacuum, etc... |
-22°F to 175°F (-30°C to 80°C) |
|
Material Specification |
Acetal |
Manufacturer |
Schmidt Kupplung |
|
UPC |
634529223031 |
Country of Origin |
Germany |
|
Tariff Code |
8483.60.8000 |
UNSPC Code used to identify products to standardize nomenclature around the world. |
31163022 |
| Product Notes | |||
|
Note 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
|
|
| CERTIFICATIONS/STANDARDS | |||
|---|---|---|---|
| ISO 9001:2015 | Conflict Minerals | ||
| RoHS3 | REACH | ||
