CL-8HX-SS

$26.50 ea
Quantity Price (USD)
1 $26.50 ea
20 $15.90 ea
100 $13.25 ea
200 $11.93 ea
500 Request Quote
In Production Lead Time: 1 Week or Less

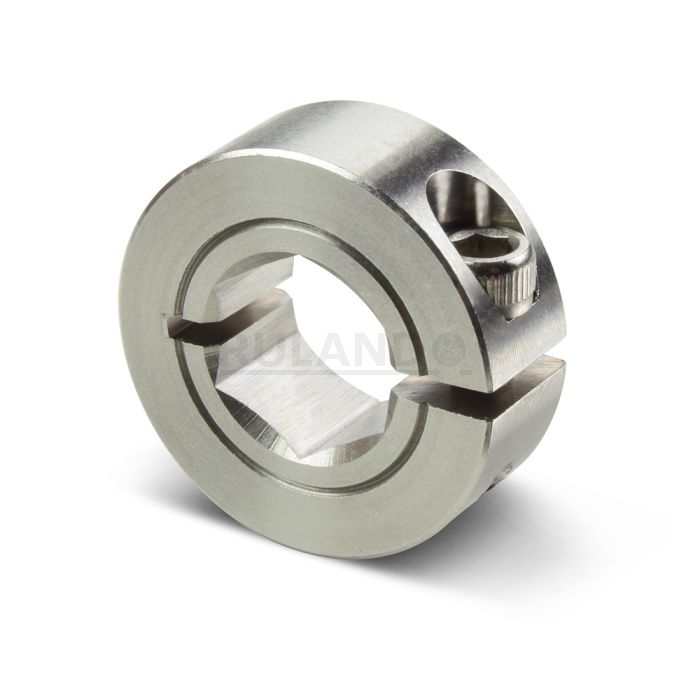

Ruland CL-8HX-SS, 1/2" Hex Bore Shaft Collar, 303 Stainless Steel, One-Piece Clamp Style, 1 1/8" OD, 0.406" Width

PRODUCT SPECIFICATIONS

Ruland CL-8HX-SS is a one-piece shaft collar with a 1/2" bore, 1 1/8" OD, and 0.406" width. It has a hex bore which is useful when the collar is used in a positive drive application. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. CL-8HX-SS is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .002"). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power. CL-8HX-SS is stamped with the Ruland name and bore size for ease of identification. Forged screws test beyond ANSI standards to ensure maximum holding power. CL-8HX-SS is machined from solid bar stock to a fine burr free finish and sourced exclusively from North American mills. Ruland uses 303 stainless steel with hardware of like material for consistent corrosion resistance. Stainless steel hardware undergoes a proprietary surface treatment process to prevent galling. It is RoHS2 and REACH compliant and manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

PRODUCT SPECIFICATIONS

Dimension

Bore B

0.5000 in

Bore Tolerance

+.002 in / +.0005 in

Outer Diameter OD

1 1/8 in

Clearance Diameter C MAX

1.281 in

Width W

0.406 in

Width Tolerance

+.003 in / -.010 in

Fastening Hardware

Forged Clamp Screw

#8-32

Screw Material

18-8 300 Series Stainless Steel

Hex Wrench Size

9/64 in

Screw Finish

Bright

Seating Torque

28 lb-in

Screw Location R

0.406 in

Number of Screws

1 ea

Additional Information

Material Specification

Type 303 Austenitic, Non-Magnetic Bar

Temperature

-40°F to 350°F
-40°C to 176°C

Finish Specification

Bright

Country of Origin

USA

Weight (lbs.)

0.0800

UPC

63452900154

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS2

Compliant

REACH

Compliant
