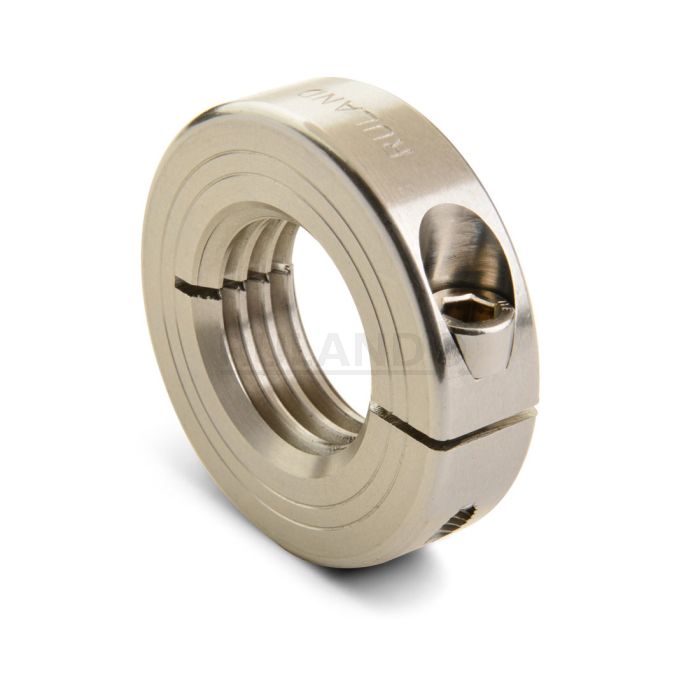

Explore More >> Ruland ATCL-14-6-SS, 7/8" - 6 TPI Acme Threaded Shaft Collar, 303 Stainless Steel, One-Piece Clamp Style, 1 5/8" OD, 0.500" Width
| Dimensions | |||
|---|---|---|---|
7/8 in - 6 TPI |
Thread Class The thread class standard that Ruland manufactures to. |
2G |
|
|
Outer Diameter (OD) |
1 5/8 in |
Width (W) |
0.500 in |
|
Clearance Diameter (C) MAX Minimum diameter required to avoid interference with hardware. |
1.808 in |
Width Tolerance |
+0.003 in / -0.010 in |
|
Recommended Shaft Tolerance Acceptable variance in nominal shaft diameter before performance loss. |
+0.0000 in / -0.0005 in |
||
| Fastening Hardware | |||
|
Forged Clamp Screw Inch or metric socket head cap screw size. |
1/4-28 |
Screw Material |
18-8 300 Series Stainless Steel |
|
Hex Wrench Size Wrench size that fits the screw head to tighten or loosen the screw. |
3/16 in |
Screw Finish Surface finish and treatments on supplied hardware. |
Bright |
|
Seating Torque Torque required to install supplied hardware. Use torque wrench for accurate seating torque. |
110 lb-in |
Screw Location (R) |
0.610 in |
|
Number of Screws |
1 ea |
||
| Recommended Installation Tools | |||
|
Torque Wrench This torque wrench and bit combo is recommended to ensure proper installation. A torque wrench prevents the screw from being over torqued which can lead to product failure. |
Recommended Hex Key This hex key set has the appropriate hex key for product installation. Trained and experienced assemblers can use a hex key in place of a torque wrench. |
||
| Additional Information | |||
|
Material Specification |
Type 303 Austenitic, Non-Magnetic Bar |
Temperature Minimum and maximum operating temperature. Operating temperature includes ambient temperature plus or minus factors such as system heat generated during operation, washdown, vacuum, etc... |
-40°F to 350°F (-40°C to 176°C) |
Bright, No Plating |
Manufacturer |
Ruland Manufacturing |
|
|
Country of Origin |
USA |
Weight (lbs) |
0.207170 |
|
UPC |
63452928751 |
Tariff Code |
8483.60.8000 |
|
UNSPC Code used to identify products to standardize nomenclature around the world. |
31162811 |
||
| Product Notes | |||
|
Note 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
|
|
