MWSP-25-SS

$157.59
Quantity Price (USD)
1 $157.59
20 $143.27
60 $119.39
100 $107.45
250 Request Quote
In stock
Registered users receive a 5% discount
Only 7 left

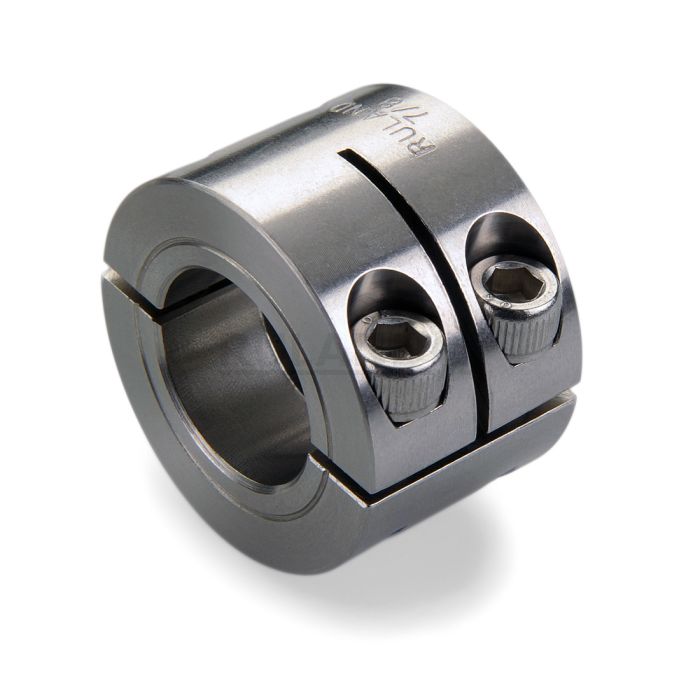

Ruland MWSP-25-SS, 25mm Double Wide Shaft Collar, 303 Stainless Steel, Two-Piece Clamp Style, 45mm OD, 31.6mm Width

Explore Similar Products

PRODUCT SPECIFICATIONS

Ruland MWSP-25-SS is a two-piece double wide shaft collar with a 25mm bore, 45mm OD, and 31.6mm width. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. It is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .05mm). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power. MWSP-25-SS is stamped with the Ruland name and bore size for ease of identification. This double wide shaft collar has 25% higher axial holding power than a round bore of equivalent size. It can also be used as a short rigid coupling for applications where a traditional rigid coupling is too long. Forged screws test beyond DIN 912 12.9 standards to ensure maximum holding power. Halves are mated throughout the manufacturing process for proper fit and alignment. MWSP-25-SS is manufactured from solid bar stock sourced from select North American mills and machined to a fine burr free finish. Ruland uses 303 stainless steel with hardware of like material for consistent corrosion resistance. Stainless steel hardware undergoes a proprietary surface treatment process to prevent galling. MWSP-25-SS is RoHS3 and REACH compliant and manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

PRODUCT SPECIFICATIONS

Dimensions

Bore (B1) Larger inner diameter. Should match nominal shaft diameter.

25 mm

Small Bore (B2) Smaller inner diameter. Should match nominal shaft diameter.

25 mm

Outer Diameter (OD)

45 mm

Bore Tolerance Variance in finished bore range before installation.

+0.050 mm / +0.012 mm

Width (W)

31.6 mm

Width Tolerance

+0.076 mm / -0.254 mm

Clearance Diameter (C) MAX Minimum diameter required to avoid interference with hardware.

52.1 mm

Recommended Gap The recommended gap between halves to maintain during installation. See installation instructions for more information.

1.59 mm

Recommended Shaft Tolerance Acceptable variance in nominal shaft diameter before performance loss.

+0.000 mm / -0.013 mm

Fastening Hardware

Forged Clamp Screw Inch or metric socket head cap screw size.

M6

Screw Material

18-8 300 Series Stainless Steel

Hex Wrench Size Wrench size that fits the screw head to tighten or loosen the screw.

5.0 mm

Screw Finish Surface finish and treatments on supplied hardware.

Bright

Seating Torque Torque required to install supplied hardware. Use torque wrench for accurate seating torque.

9.6 Nm

Screw Location (R)

17.50 mm

Number of Screws

4 ea

Additional Information

Material Specification

Type 303 Austenitic, Non-Magnetic Bar

Temperature Minimum and maximum operating temperature. Operating temperature includes ambient temperature plus or minus factors such as system heat generated during operation, washdown, vacuum, etc...

-40°F to 350°F (-40°C to 176°C)

Finish Specification Surface finish specifications.

Bright, No Plating

Manufacturer

Ruland Manufacturing

Country of Origin

USA

Moment of Inertia

8.283 x 10-6 kg-m2

Weight (lbs)

0.550700

UPC

634529107850

Tariff Code

8483.60.8000

UNSPC Code used to identify products to standardize nomenclature around the world.

31162811

Product Notes

Note 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop 65 Required for the US State of California only.

WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant

REACH

Compliant

Installation Instructions

  1. Use the MWSP-25-SS double wide shaft collar as it is received.
  2. Wipe the bore clean.
  3. Apply a thin coat of light oil to the shaft.
  4. Tighten the screws in two stages, starting with the inside screws. Using a torque wrench with 5 mm bit, tighten the inside screws to 4.8 Nm which is half the recommended seating torque. Repeat for the outside screws, again tightening to half of the recommended seating torque.
  5. On two-piece couplings be sure to maintain the gap between the two halves during installation.
  6. Tighten the screws to the full recommended seating torque of 9.6 Nm following the same pattern, starting with the inside screws first.
