MQCL-12-A

$32.13 ea
Quantity Price (USD)
1 $32.13 ea
10 $19.28 ea
25 $16.07 ea
50 $14.46 ea
100 Request Quote
In stock
Free 2-Day shipping on all Domestic Web Orders

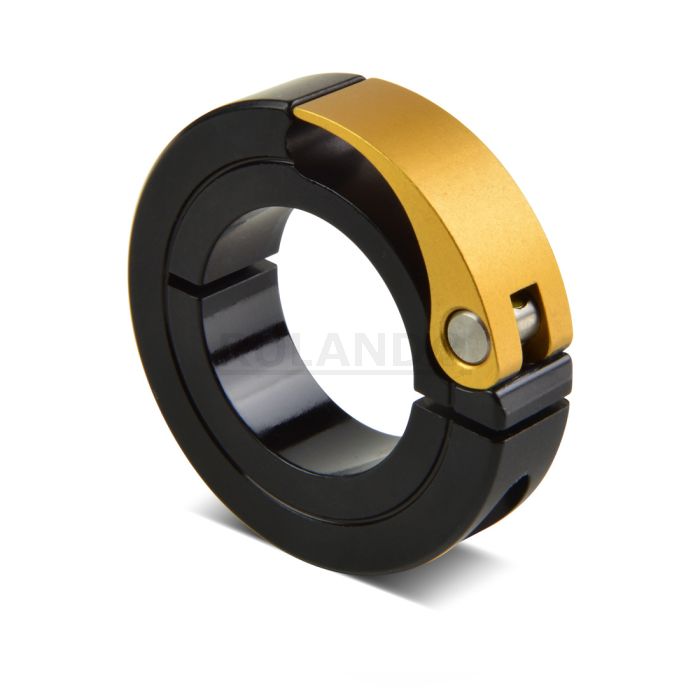

Ruland MQCL-12-A, 12mm Quick Clamping Shaft Collar, Aluminum, Quick Release, 38mm OD, 10mm Width

PRODUCT SPECIFICATIONS

Ruland MQCL-12-A is a quick clamping shaft collar with 12mm bore, 38mm OD, and 10mm width. No tools are required to install or remove allowing for quick installations and adjustments while reducing downtime. It is designed for light duty stationary or low rotating applications where frequent change outs of items including media, guide rails, or other setup fixturing is required. MQCL-12-A has an integral handle that can be actuated using finger power only for easy postioning adjustments. The screw can be adjusted to be compatible with wider shaft tolerances and provide a range of axial holding power. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. MQCL-12-A is machined from bar stock that is sourced exclusively from North American mills. It is RoHS2 and REACH compliant and manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

Installation Instructions

DownLoad

PRODUCT SPECIFICATIONS

Dimensions

Bore B

12 mm

Bore Tolerance

+.050 mm / +.012 mm

Width W

10 mm

Outer Diameter OD

38 mm

Width Tolerance

+.076 mm / -.254 mm

Fastening Hardware

Cap Screw

M3

Screw Material

18-8 300 Series Stainless Steel

Hex Wrench Size

2.5 mm

Screw Finish

Bright

Seating Torque

Factory Preset: 0.34 Nm, Min: 0.11 Nm, Max: 0.40 Nm

Number of Screws

1 ea

Additional Information

Material Specification

Body: 6061-T651 Aluminum Bar, Handle: 6063-T651 Aluminum

Temperature

-40°F to 200°F
-40°C to 93°C

Finish Specification

Body: Sulfuric Anodized MIL-A-8625 Type II, Class 2 and ASTM B580 Type B Black Anodize, Handle: Sulfuric Anodized MIL-A-8625 Type II, Class 2 Gold Anodize with Teflon

Country of Origin

USA

Weight (lbs.)

0.0560

UPC

63452912563

Axial Load

Min: 133 N, Max: 267 N

CERTIFICATIONS/STANDARDS
ISO 9001:2008

Certified

Conflict Minerals

Compliant

RoHS2

Compliant

REACH

Compliant
