MCLX-10-6-SS

$139.22 ea
Quantity Price (USD)
1 $139.22 ea
10 $100.14 ea
40 $77.96 ea
100 $46.81 ea
250 Request Quote
In stock
Free 2-Day shipping on all Domestic Web Orders

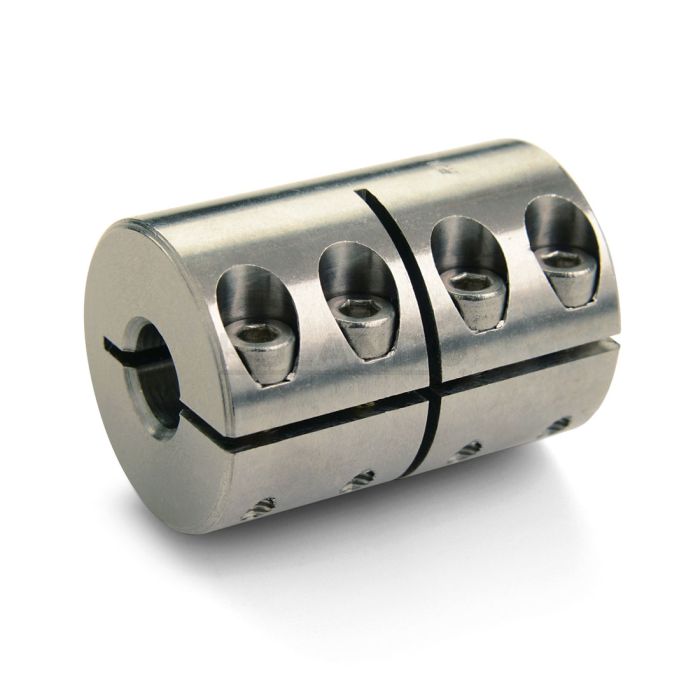

Ruland MCLX-10-6-SS, 10mm x 6mm Rigid Coupling, 303 Stainless Steel, One-Piece Clamp Style, 29mm OD, 45mm Length

PRODUCT SPECIFICATIONS

Ruland MCLX-10-6-SS is a one-piece rigid coupling with 10mm x 6mm bores, 29mm OD, and 45mm length. It has precision honed bores on to ensure bores are collinear and does not introduce misalignment or vibration into the system making it suitable for high precision servo appliactions as well as shaft to shaft connections. Proprietary Nypatch® anti-vibration coating on hardware allows for even seating of the screw, repeated screw installations, prevents galling, and maintains high holding power. It eliminates the need to treat screws upon receipt greatly reducing installation time. Forged screws test beyond DIN 912 12.9 standards to ensure maximum holding power. Tightly controlled bore tolerance of +.050mm/+.012mm is maintained. MCLX-10-6-SS is made from 303 stainless steel with hardware of like material for consistent corrosion resistance. It is machined from solid bar stock that is sourced exclusively from North American mills and is RoHS2 and REACH compliant. MCLX-10-6-SS is manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

Installation Instructions

DownLoad

PRODUCT SPECIFICATIONS

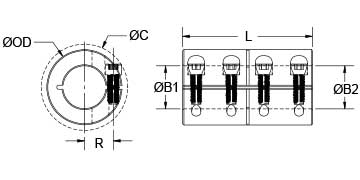

Dimensions

Large Bore B1

10 mm

Small Bore B2

6 mm

B1 Shaft Penetration

22.5 mm

B2 Shaft Penetration

22.5 mm

Outer Diameter OD

29 mm

Bore Tolerance

+.050 mm / +.012 mm

Length L

45 mm

Fastening Hardware

Forged Clamp Screw

M4

Screw Material

18-8 300 Series Stainless Steel with Nypatch®

Hex Wrench Size

3.0 mm

Screw Finish

Bright

Seating Torque

2.5 Nm

Number of Screws

4 ea

Performance Specifications

Torque

32 Nm

Maximum Speed

4,000 RPM

Additional Information

Material Specification

Type 303 Austenitic, Non-Magnetic Bar

Temperature

-40°F to 350°F
-40°C to 176°C

Finish Specification

Bright

Country of Origin

USA

Weight (lbs.)

0.4500

UPC

63452912303

Product Notes

Note 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

CERTIFICATIONS/STANDARDS
ISO 9001:2008

Certified

Conflict Minerals

Compliant

RoHS2

Compliant

REACH

Compliant
