Flanged Bolt Sensor Mount Kit, MT15-2W-FB-KIT


Ruland Flanged Bolt Two-Way Sensor Mount Kit

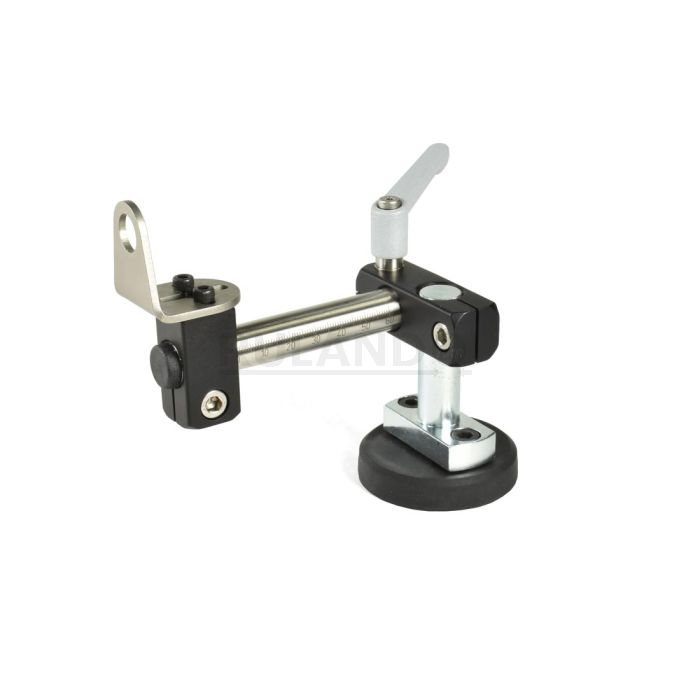

The flanged bolt sensor mounting system is designed to mount round sensors with outer diameters up to 30mm. Starting from the bottom up, the parts that make up this system are: a flanged bolt base, a perpendicular two-way connector, a round tube with tube caps, a bracket clamp, and the sensor bracket. A couple of add-on pieces are available to make the system more portable and easier to adjust. A portable magnetic base can be added to enable users to quickly move the system to different locations without tools. A clamping lever kit can also be added to the connector, allowing users to adjust the length of the system by sliding the connectors along the round tube. Tubes with scales are available for precise adjusting of the system. All of these parts combine to make a highly customizable system that is easy to assemble, install, move, and adjust.


This Kit Includes

Kit Item 1 Included

Flange Bolt, MT15

Kit Item 2 Included

90 Degree Connector MT15 3

Kit Item 3 Included

Bracket Clamp MT15 6

Kit Item 4 Included

Round Tube Cap MT15 8

You Must Select

Kit Item Configurable 1

4. 100mm Tube, MT15-ROD-100-SS
4. 200mm Tube, MT15-ROD-200-SS
4. 300mm Tube, MT15-ROD-300-SS
4. 100mm Tube with Scale, MT15-SROD-100-SS
4. 200mm Tube with Scale, MT15-SROD-200-SS
4. 300mm Tube with Scale, MT15-SROD-300-SS

Kit Item Configurable 2

7. Sensor Bracket w/8mm hole
7. Sensor Bracket w/12mm hole
7. Sensor Bracket w/18mm hole
7. Sensor Bracket w/30mm hole
7. Mounting Bracket without Hole

Your Extra Options Are

Kit Items Optional 1


Kit Items Optional 2

Clamping Lever MT15 5

Additional Information




JW Winco/ Otto Ganter



País de origen


Flanged Bolt Sensor Mount Kit, MT15-2W-FB-KIT
