VMDTC25-30-M6-55-SSNR/5PK

$ 48,20
Cantidad Price (USD)
1 $ 48,20
10 $ 44,35
20 $ 40,15
50 $ 36,15
100 Request Quote
Disponible
Registered users receive a 5% discount
Sólo queda 2

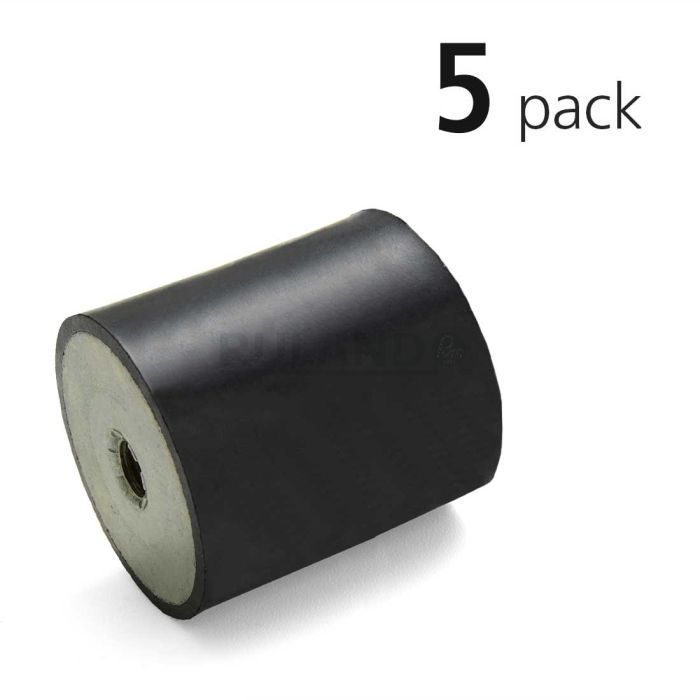

Ruland VMDTC25-30-M6-55-SSNR/5PK, Vibration Isolation Mount, 25mm OD, M6 Tapped Holes, 6mm Tapped Hole Depths, 30mm Height, 55 Shore A Natural Rubber Jacket, Stainless Steel

Explore Similar Products

PRODUCT SPECIFICATIONS

Ruland VMDTC25-30-M6-55-SSNR/5PK is a 5 pack of vibration isolation mounts, each with two tapped holes. An individual vibration isolation mount has 25mm outside diameter, M6 tapped holes, 6mm tapped hole depths, and 30mm height. Vibration isolation mounts are used to dampen shock loads and reduce noise and wear on industrial equipment such as motors, conveyors, compressors, fans, or pumps which allows for a safer and more pleasant working environment. They are often referred to as a sandwich mount or rubber buffer because they function as a shock or vibration isolator sandwiched between two machine components or surfaces. A vibration isolation mount can be mounted to the system by threading it onto an existing stud on the components". The rubber jacket is made from natural rubber which has good elasticity and is well suited for most industrial equipment. Vibration isolation mounts in this pack have 55 Shore A hardness for a balance of rigidity and shock absorption. Bodies are made from stainless steel allowing for increased corrosion resistance. These vibration isolation mounts are sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.

PRODUCT SPECIFICATIONS

Dimensions

OG Style

Double Threaded Hole

OG VI Outside Diameter

0,98 pulg (25 mm)

Altura (H1)

1,18 pulg (30 mm)

Rosca (TH)

M6 x 1,0

Espesor de la placa (PT)

0,08 pulg (2 mm)

OG VI Tapped Hole Depth

0,24 pulg (6.1 mm)

Performance Specifications

Rango del resorte

399,71 lb-pulg (70 N/mm)

Dureza en Shore

55A (+/- 5)

Desviación máxima

0,25 pulg (6,4 mm)

Carga máxima

118,02 lb (525 N)

Additional Information

Multipack Quantity

5

Geometría del ensamblaje

Cylindrical

Material del caucho

Caucho natural

OG Metallic Body Material

Acero Inoxidable

OG Metallic Body Finish

Brillante

País de origen

Hungría

peso

0.291900

UPC

634529311950

Tariff Code

4016.99.6000

UNSPC

31162804

Product Notes

Nota 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop. 65

WARNING This product can expose you to chemicals including Soots and Nickel (metallic)
