UD12-XX-XX-F-KIT

$ 230,14
Cantidad Price (USD)
1 $ 230,14
5 $ 211,73
10 $ 191,71
25 $ 172,61
50 Request Quote
Built to Order. Lead Time: 2 Weeks or Less
Ruland UD12-XX-XX-F-KIT, Machinable Bore Double Universal Joint Kit, Friction Bearing, Steel, 0.745" (18.9mm) OD, 3.813" (96.9mm) Length

Explore Similar Products

PRODUCT SPECIFICATIONS

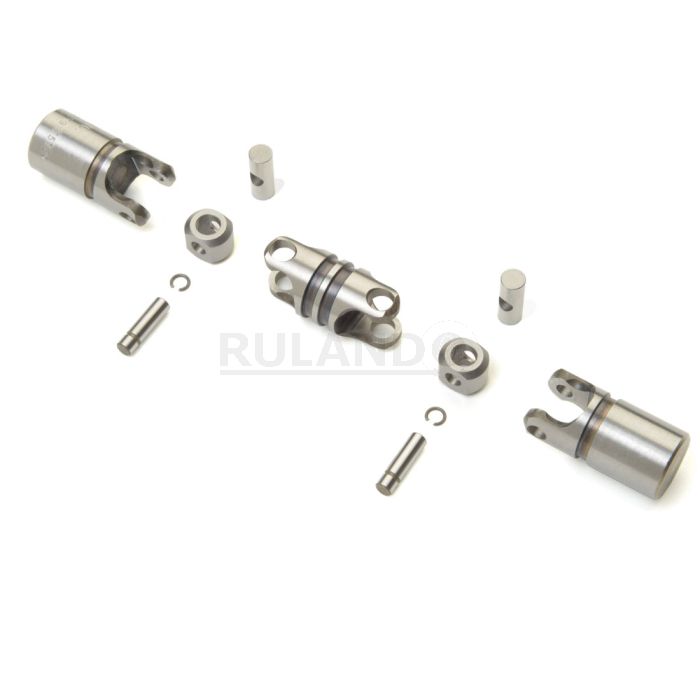

Ruland UD12-XX-XX-F-KIT is a double cardan friction bearing universal joint kit that can be machined with a bore size and geometry of the user's choice. It has a 0.745" (18.9mm) OD and 3.813" (96.9mm) length. UD12-XX-XX-F-KIT is ideal for applications with wide distances between shafts and can accommodate all forms of misalignment. This plain bearing double universal joint is comprised of pins and blocks that are precision machined, selectively heat treated, and ground for high strength, accuracy, and wear resistance. The combination of these components with precision ground and hardened yoke ears allow for a longer lifespan, increased performance in demanding applications, and greater angular misalignment of up to 90° when compared to commodity style double universal joints. UD12-XX-XX-F-KIT is made from high grade alloy steel for durability and high strength. It can be combined with boot UBOOT12/19-NI-KIT to protect the joints from unwanted contaminants such as dust or water and self lubricate reducing maintenance time. This double cardan universal joint is manufactured in the USA by Belden Universal for strict control of processes.

PRODUCT SPECIFICATIONS

Dimensions

Agujero (B1)

No Bore

Agujero (B2)

No Bore

Penetración del eje máximo (B1)

0,950 pulg (24,1 mm)

Penetración del eje máximo (B2)

0,950 pulg (24,1 mm)

Diámetro exterior de la junta

0,745 pulg (18,9 mm)

Longitud L

96,9 mm (3,813 pulg)

Longitud del centro (LC)

1,125 pulg (28,6 mm)

Longitud de horquilla (LY)

1,344 pulg (34,1 mm)

Profundidad del cubo (LH)

0,950 pulg (24,1 mm)

Max agujero redondo (pulg)

0,4531 pulg

Max agujero redondo

11 mm

Max agujero cuadrado o hexagonal (pulg)

0,4375 pulg

Max agujero cuadrado o hexagonal

10 mm

Max agujero ciego (pulg)

0,6250 pulg

Max agujero ciego

15 mm

Max agujero redondo con chavetero (pulg)

7/16" Bore, 3/32" Keyway

Max agujero redondo con chavetero

12mm Bore, 4mm Keyway

Performance Specifications

Pico del par de transmisión

1125 pulg-lb (127,1 Nm)

Par recomendado

225 pulg-lb (25,4 Nm)

Max ángulo de operación

90°

Additional Information

Especificación de material

Alloy Steel

Fabricante

Belden Universal

País de origen

EE.UU.

peso

0.383000

UJ Lubricant

LUBRIPLATE No. 1200-2

Cubierta protectora adecuada

UBOOT12/19-NI-KIT

UPC

634529288290

Tariff Code

8483.60.4000

UNSPC

25173810

Product Notes

Nota 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop. 65

WARNING This product can expose you to the chemical Ethylene Thiourea, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

UD12-XX-XX-F-KIT
