MNTBRKT-PL-16-SS

$ 7,92
Cantidad Price (USD)
1 $ 7,92
10 $ 7,29
25 $ 6,60
50 $ 5,94
100 Request Quote
Disponible
Registered users receive a 5% discount

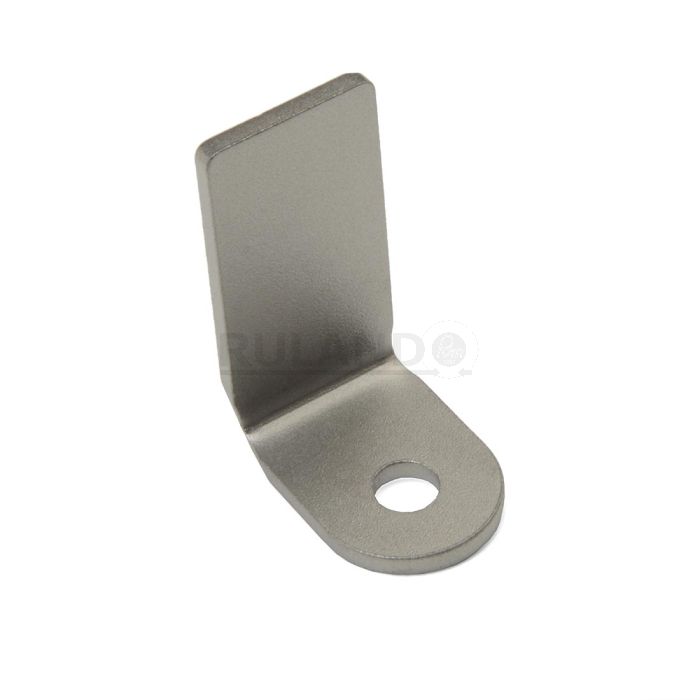

Ruland Mounting Bracket, W 16mm, Stainless Steel

PRODUCT SPECIFICATIONS

Ruland MNTBRKT-PL-16-SS is a mounting bracket with a 16mm bracket width and M5 tapped hole. It is designed to fit with Ruland bracket clamps. MNTBRKT-PL-16-SS is made of stainless steel for corrosion resistance and durability in a variety of industrial environments. It is primarily used to mount sensors, screens, reflectors, plexiglass machine guards, and other industrial components. The user can drill thru or tapped holes to mount components or weld the component directly to the bracket. MNTBRKT-PL-16-SS is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUCT SPECIFICATIONS

Dimensions

Tornillo de montaje SC

M5

Del borde al tornillo L2

15 mm

Ancho del soporte W

16 mm

Espesor T

2 mm

Altura de la placa H1

32 mm

Longitud de la base L1

23 mm

Additional Information

peso

0.010400

Especificación de material

Barra austenítica no magnética tipo AISI 303

Fabricante

JW Winco/ Otto Ganter

UPC

634529229453

País de origen

Alemania

Tariff Code

7609.00.0000

UNSPC

31162908

Product Notes

Nota 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop. 65

WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
