MJC70-20-A

$ 124,63
Cantidad Price (USD)
1 $ 124,63
3 $ 113,30
5 $ 94,42
10 $ 84,98
25 Request Quote
Disponible
Registered users receive a 5% discount
Sólo queda 6

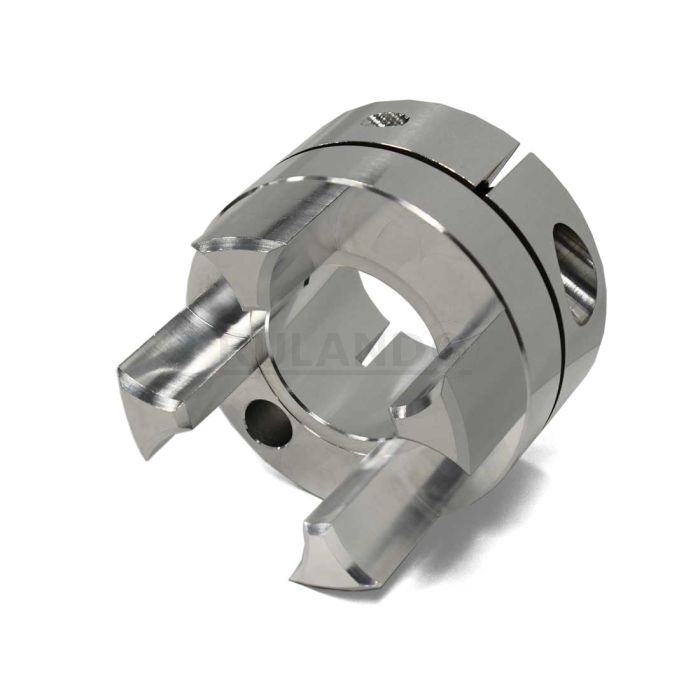

Ruland MJC70-20-A, 20mm Jaw Coupling Hub, Aluminum, Clamp Style, 69.9mm OD, 33.0mm Length

Explore Similar Products

PRODUCT SPECIFICATIONS

Ruland MJC70-20-A is a clamp zero-backlash jaw coupling hub with a 20mm bore, 69.9mm OD, and 93.3mm length. It is a component in a three-piece design consisting of two aluminum hubs and an elastomeric insert called the spider creating a lightweight low inertia coupling capable of speeds up to 8,000 RPM. This three-piece design allows for a highly customizable coupling that easily combines clamp or set screw hubs with inch, metric, keyed, and keyless bores. Spiders are available in three durometers allowing the user to tailor coupling performance to their application. Ruland jaw couplings have a balanced design for reduced vibration at high speeds. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. MJC70-20-A is machined from bar stock that is sourced exclusively from North American mills and is RoHS3 and REACH compliant. It is manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

PRODUCT SPECIFICATIONS

Dimensions

Agujero (B1)

20 mm

Penetración del eje máximo (B1)

33,0 mm

Diámetro exterior OD

2,750 pulg (69,9 mm)

Tolerancia del agujero

+0,03 mm / -0,00 mm

Ancho del cubo (LH)

33,0 mm

Longitud L

3,674 pulg (93,3 mm)

Tolerancia del eje recomendada

+0,000 mm / -0,013 mm

Fastening Hardware

Tornillo de abrazadera forjado

M8

Número de tornillos

1 cada

Material del tornillo

Alloy Steel

Acabado de los tornillos

Black Oxide

Tamaño de la llave hexagonal

6,0 mm

Par de apriete

39 Nm

Performance Specifications

Torque Specifications

Torque ratings vary with insert selection

Misalignment

Misalignment ratings vary with insert selection

Velocidad máxima

8,000 RPM

Momento de inercia

2.356-4 kg-m2

Bearing Support Required

Recommended Inserts

JD44/70-98R, JD44/70-92Y

¿Juego cero?

¿Diseño equilibrado?

Fail Safe

Additional Information

peso

0.727005

Temperatura

23°C a 82°C

Especificación de material

Barra de aluminio 2024-T351

Acabado

Bright

Especificación de acabado

Bright, No Plating

Fabricante

Ruland Manufacturing

Recommended Gap Between Hubs

0,074 pulg (1,88 mm)

País de origen

EE.UU.

UPC

65432940679

UNSPC

31163011

Tariff Code

8483.60.8000

Product Notes

Nota 1

Stainless steel hubs are available upon request.

Nota 2

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Nota 3

Torque ratings for the couplings are based on the physical limitations/failure point of the spiders. Under normal/typical conditions the hubs are capable of holding up to the nominal torque of the spiders. Please consult technical support for more assistance.

Prop. 65

WARNING This product can expose you to the chemical Ethylene Thiourea, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
