JD44/70-92Y

$ 56,35
Cantidad Price (USD)
1 $ 56,35
3 $ 51,23
5 $ 42,69
10 $ 38,42
25 Request Quote
Disponible
Registered users receive a 5% discount

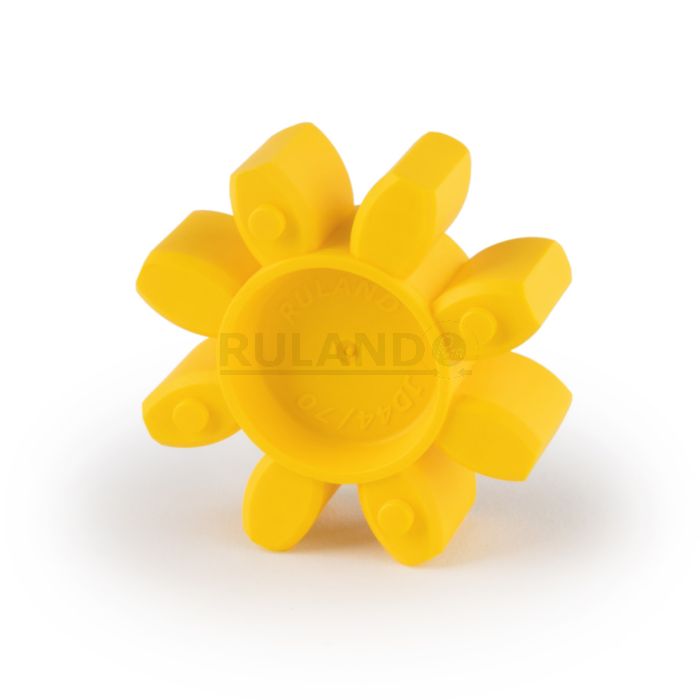

Jaw Coupling Spider, 92 Shore A Yellow, 2.750" (69.9mm) OD

Explore Similar Products

PRODUCT SPECIFICATIONS

Ruland JD44/70-92Y is a zero-backlash jaw coupling spider designed to fit Ruland hubs that have an 2.750" (69.9mm) OD. It is a component in a three-piece design consisting of two aluminum hubs and an elastomeric insert called the spider creating a lightweight low inertia coupling capable of speeds up to 8,000 RPM. This three-piece design allows for a highly customizable coupling that easily combines clamp or set screw hubs with inch, metric, keyed, and keyless bores. JD44/70-92Y is made from polyurethane and has 92 Shore A hardness allowing for a good balance of dampening and torque capacity. Ruland jaw couplings have a balanced design for reduced vibration at high speeds. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. JD44/70-92Y is RoHS3 and REACH compliant.

PRODUCT SPECIFICATIONS

Dimensions

Diámetro exterior OD

2,750 pulg (69,9 mm)

Performance Specifications

Par recomendado

300 pulg-lb (33,9 Nm)

Desalineación angular

0,9°

Pico del par de transmisión

600 pulg-lb (67,79 Nm)

Desalineación paralela

0,008 pulg (0,20 mm)

Rigidez torsional

500 lb-pulg/Deg (56,49 Nm/Deg)

Momento de inercia

0.113995 lb-in2 (3.336 X 10-5 kg-m2)

Movimiento axial

0,060 pulg (1,52 mm)

Velocidad máxima

8,000 RPM

Bearing Support Required

¿Juego cero?

Approximate Assembly Force

140 lbf

Bearing Load at Max Parallel Misalignment

65 lbf

Additional Information

peso

0.128900

Temperatura

23°C a 82°C

Especificación de material

Yellow Spider

Especificación de acabado

Plain

Fabricante

Ruland Manufacturing

UPC

634529409077

País de origen

EE.UU.

Tariff Code

8483.60.8000

UNSPC

31163011

Product Notes

Nota 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Nota 2

Torque ratings for the couplings are based on the physical limitations/failure point of the spiders. Under normal/typical conditions the hubs are capable of holding up to the nominal torque of the spiders. In some cases especially when the smallest standard bores are used or where shafts are undersized slippage on the shaft is possible below the nominal torque of the spiders. Keyways are available to provide additional torque capacity in the shaft/hub connection when required. Please consult technical support for more assistance.

JD44/70-92Y
