    main product photo

    VMDTC15-15-M4-60-SSNR/5PK

    35,98 €
    Artikeldetails Datenblatt
    Merken
    Email
    Out of Stock Lead Time: 2 Weeks or Less

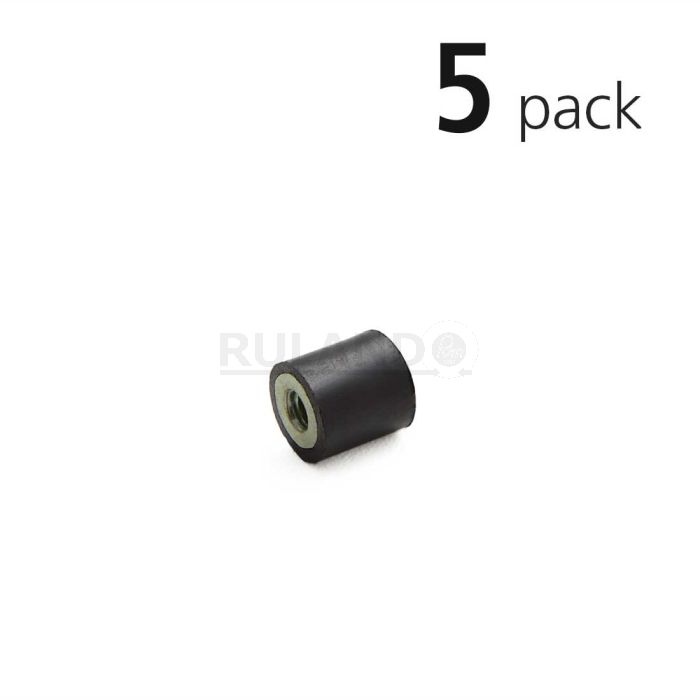

    Ruland VMDTC15-15-M4-60-SSNR/5PK, 5 Pack Of Vibration Isolation Mounts, 15mm OD, M4 Tapped Holes, 5mm Tapped Hole Depth, 15mm Height, 60 Shore A Natural Rubber Jacket, Stainless Steel

    Ähnliche Produkte

    PRODUKTSPEZIFIKATIONEN

    Ruland VMDTC15-15-M4-60-SSNR/5PK is a 5 pack of vibration isolation mounts, each with two tapped holes. An individual vibration isolation mount has 15mm outside diameter, M4 tapped holes, 5mm tapped hole depth, and 15mm height. Vibration isolation mounts are used to dampen shock loads and reduce noise and wear on industrial equipment such as motors, conveyors, compressors, fans, or pumps which allows for a safer and more pleasant working environment. They are often referred to as a sandwich mount or rubber buffer because they function as a shock or vibration isolator sandwiched between two machine components or surfaces. A vibration isolation mount can be mounted to the system by threading it onto an existing stud on the components. The rubber jacket is made from natural rubber which has good elasticity and is well suited for most industrial equipment. Vibration isolation mounts in this pack have 60 Shore A hardness for a balance of rigidity and shock absorption. Bodies are made from stainless steel allowing for increased corrosion resistance. These vibration isolation mounts are sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    OG Style

    Double Threaded Hole

    OG VI Outside Diameter

    0,59 zoll (15 mm)

    Höhe (H1)

    0,59 zoll (15 mm)

    Gewinde (TH)

    M4 x 0,7

    OG VI Tapped Hole Depth

    0,16 zoll (4 mm)
    Leistungsbeschreibungen

    Federrate

    330,50 lb/zoll (58,80 N/mm)

    Shore Härte

    60A (+/- 5)

    Max. Ablenkung

    0,10 zoll (2,5 mm)

    Max. Belastung

    33,05 lb (147 N)
    zusätzliche Information

    Multipack Quantity

    5

    Dämpfergeometrie

    Cylindrical

    Gummimaterial

    Naturkautschuk

    OG Metallic Body Material

    Edelstahl

    OG Metallic Body Finish

    Glänzend Poliert

    Herkunftsland

    Spanien

    Gewicht (kg)

    0.077000

    Tariff Code

    4016.99.6000

    UNSPC

    31162804
    Produkthinweise

    Anmerkung 1

    Performance ratings are for guidance only. The user must determine suitability for a particular application.
