VMDTC15-10-M4-55-SSNR/5PK

25,76 €
Menge Preis (USD)
1 25,76 €
10 23,68 €
20 21,46 €
50 19,34 €
100 Angebot anfordern
Auf Lager
Registered users receive a 5% discount
Nur noch 3 verfügbar

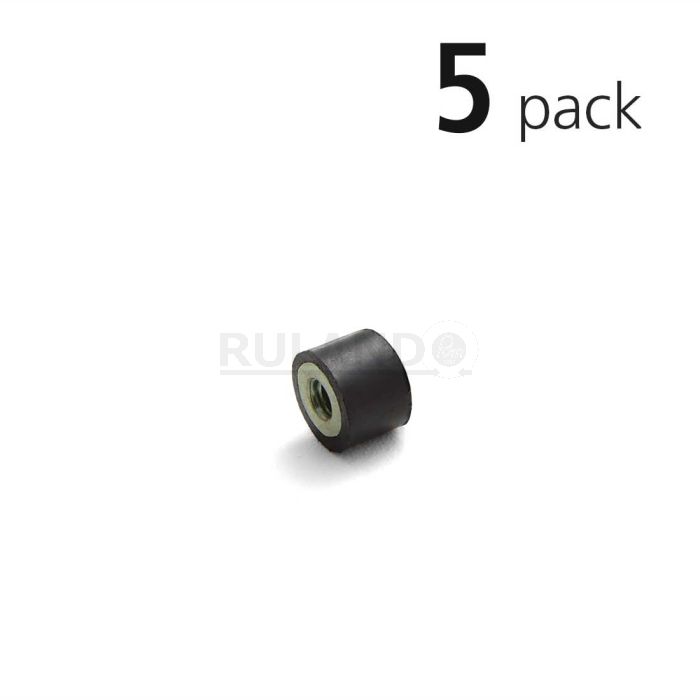

Ruland VMDTC15-10-M4-55-SSNR/5PK, Vibration Isolation Mount, 15mm OD, M4 Tapped Holes, 4mm Tapped Hole Depths, 10mm Height, 55 Shore A Natural Rubber Jacket, Stainless Steel

Ähnliche Produkte

PRODUKTSPEZIFIKATIONEN

Ruland VMDTC15-10-M4-55-SSNR/5PK is a 5 pack of vibration isolation mounts, each with two tapped holes. An individual vibration isolation mount has 15mm outside diameter, M4 tapped holes, 4mm tapped hole depths, and 10mm height. Vibration isolation mounts are used to dampen shock loads and reduce noise and wear on industrial equipment such as motors, conveyors, compressors, fans, or pumps which allows for a safer and more pleasant working environment. They are often referred to as a sandwich mount or rubber buffer because they function as a shock or vibration isolator sandwiched between two machine components or surfaces. A vibration isolation mount can be mounted to the system by threading it onto an existing stud on the components". The rubber jacket is made from natural rubber which has good elasticity and is well suited for most industrial equipment. Vibration isolation mounts in this pack have 55 Shore A hardness for a balance of rigidity and shock absorption. Bodies are made from stainless steel allowing for increased corrosion resistance. These vibration isolation mounts are sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.

PRODUKTSPEZIFIKATIONEN

Abmessungen

OG Style

Double Threaded Hole

OG VI Outside Diameter

0,59 zoll (15 mm)

Höhe (H1)

0,39 zoll (10 mm)

Gewinde (TH)

M4 x 0,7

Plattendicke (PT)

0,06 zoll (1,4 mm)

OG VI Tapped Hole Depth

0,16 zoll (4 mm)

Leistungsbeschreibungen

Federrate

885 lb-zoll (155 N/mm)

Shore Härte

55A (+/- 5)

Max. Ablenkung

0,08 zoll (2,0 mm)

Max. Belastung

70,81 lb (315 N)

zusätzliche Information

Multipack Quantity

5

Dämpfergeometrie

Cylindrical

Gummimaterial

Naturkautschuk

OG Metallic Body Material

Edelstahl

OG Metallic Body Finish

Glänzend Poliert

Herkunftsland

Ungarn

Gewicht (kg)

0.056700

UPC

634529311769

Tariff Code

4016.99.6000

UNSPC

31162804

Produkthinweise

Anmerkung 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop 65

WARNING This product can expose you to chemicals including Soots and Nickel (metallic)
