MT8-SWMB-M5-AN

27,66 €
Menge Preis (USD)
1 27,66 €
10 25,45 €
25 23,04 €
50 20,74 €
100 Angebot anfordern
Auf Lager
Registered users receive a 5% discount
Nur noch 4 verfügbar

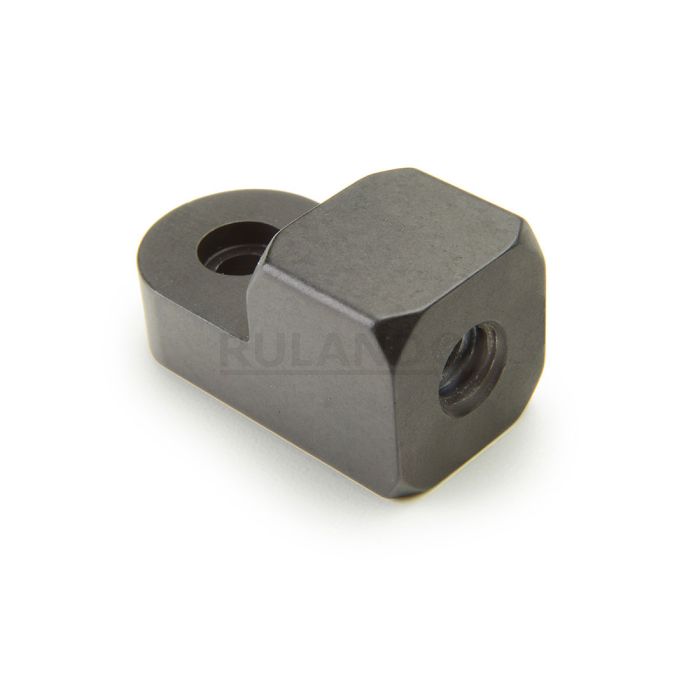

Ruland Swivel Mounting Block, Width/Height 16mm, Length 30mm, Black Anodized Aluminum

PRODUKTSPEZIFIKATIONEN

Ruland MT8-SWMB-M5-AN is a swivel mounting block with a M5 tapped hole, 8mm base height, 16mm width and height, and 30mm overall length. It is designed to fit with Ruland modular mounting system swivel components that begin with MT8. MT8-SWMB-M5-AN is aluminum with a black anodized finish and screws are 304 stainless steel for added corrosion resistance when compared to unplated types. This swivel mounting block is used to support brackets for mounting sensors, screens, reflectors, plexiglass machine guards, and other industrial components. The bracket is mounted directly to the mounting block by a single M5 screw. An MT8-SWALK-M4-16 adjustable clamping handle can be used to rapidly reposition MT8-SWMB-M5-AN without the use of tools. It is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUKTSPEZIFIKATIONEN

Abmessungen

Gewindebohrung TT

M5

Durchmesser Gegenbohrung K1

7 mm

Durchmesser Gegenbohrung K2

4,5 mm

Breite und Höhe W1

16 mm

Halterungshöhe H1

8 mm

Kante zur Mitte der Gelenkbohrung L2

22 mm

Gesamtlänge L1

30 mm

Nabenlänge H2

13 mm

zusätzliche Information

Materialspezifikation

Eloxiertes Aluminium

Hersteller

JW Winco/ Otto Ganter

Herkunftsland

Deutschland

Gewicht (kg)

0.012200

UPC

634529230060

Tariff Code

7609.00.0000

UNSPC

31162908

Produkthinweise

Anmerkung 1

Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.

MT8-SWMB-M5-AN
