MT8-CCSWH-16-AN

32,27 €
Menge Preis (USD)
1 32,27 €
10 29,69 €
25 26,89 €
50 24,21 €
100 Angebot anfordern
Auf Lager
Registered users receive a 5% discount
Nur noch 3 verfügbar

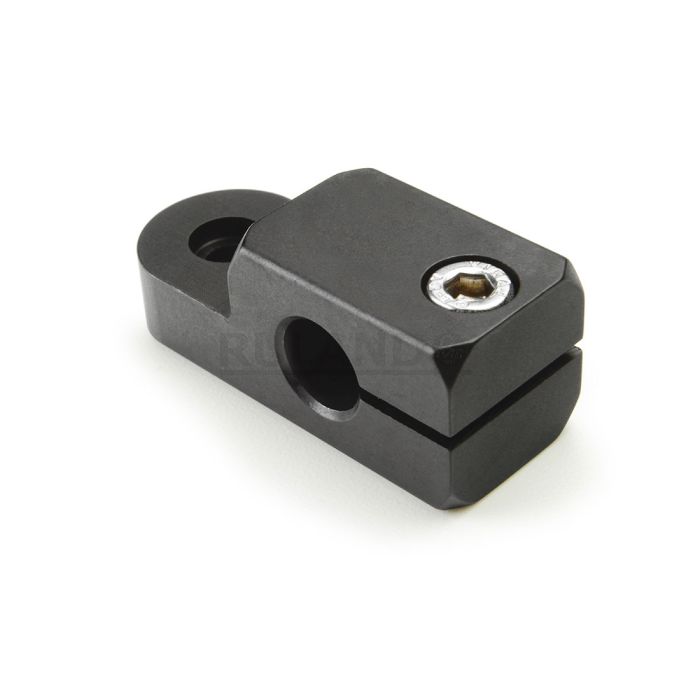

Ruland Swivel Clamp Joint, Swivel Thru Hole 4.5mm, Clamp Width 16mm, Thru Hole 8mm, Clamp Screw M4, L 40mm, Black Anodized Aluminum

PRODUKTSPEZIFIKATIONEN

Ruland MT8-CCSWH-16-AN is a swivel clamp joint with a thru hole for 8mm round tube, M4 clamp screw, 8mm base height, 16mm width and height, and 40mm overall length. It is designed to fit with MT8 swivel clamp bases, MT8 clamp connectors and mounting blocks, and MT8 round tubes. When combined with a swivel bases or attachment clamp joints, it is an ideal articulating mounting solution for screens, sensors, reflectors, plexiglass machine guards, and other components that require frequent adjustments. The horizontal bore is transverse to the swivel axis. An MT8-SWALKS-M4-16 adjustable clamping hanlde can be used to join it to other Ruland swivel components or tubes for rapid repositioning without the use of tools. This part is aluminum with a black anodized finish for added corrosion resistance when compared to unplated types. MT8-CCSWH-16-AN is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUKTSPEZIFIKATIONEN

Abmessungen

Durchmesser Bohrung B

8 mm

Bohrungstoleranz

+0,09/-0 mm

Durchmesser Gegenbohrung K1

7 mm

Durchmesser Gegenbohrung K2

4,5 mm

Klemmschraube CL

M4

Gesamtlänge L1

40 mm

Nabenlänge H2

23 mm

Kante zur Mitte der Gelenkbohrung L2

32 mm

Mitte zu Mitte LC

18,5 mm

Breite und Höhe W1

16 mm

Halterungshöhe H1

8 mm

zusätzliche Information

Materialspezifikation

Eloxiertes Aluminium

Hersteller

JW Winco/ Otto Ganter

Herkunftsland

Deutschland

Gewicht (kg)

0.018800

UPC

634529230589

Tariff Code

7609.00.0000

UNSPC

31162908

Produkthinweise

Anmerkung 1

Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.

Prop 65

WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

MT8-CCSWH-16-AN
