    main product photo

    MT12-CGRC-85S-PS

    11,85 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 11,85 €
    10 10,90 €
    25 9,87 €
    50 8,89 €
    100 Angebot anfordern
    Auf Lager
    Registered users receive a 5% discount

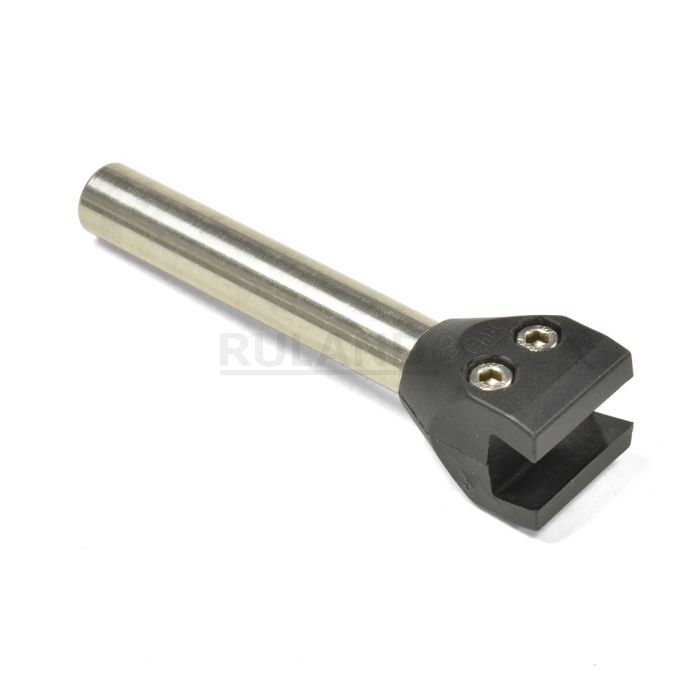

    Conveyor Guide Clamp With Rod, Stainless Steel Rod, 17mm (0.67 in) Channel Width, 12mm Rod OD, 85mm Rod Length

    PRODUKTSPEZIFIKATIONEN

    Ruland MT12/12-CB2W-A is a two-way base connector with a 38mm base diameter, 12mm round thru holes, a 10mm square thru hole, M5 clamp screws, and an overall length of 25mm. The base is aluminum and the screws are 304 stainless steel. The two-way base connector is typically used as a base in support structures for mounting sensors, plexiglass guards, or other applications. It is designed for tubes that have the same thru hole size. The clamping force of the clamp onto the tube is achieved via the socket cap screws but you can choose to replace these with adjustable lever clamp kits that have the same screw size. It is RoHS3 and REACH compliant.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Klemmgabelbreite

    17 mm (0,67 in)

    Stangendurchmesser

    12 mm

    Stangenlänge (L2)

    85 mm

    Klemmenlänge L1

    31,5 mm

    Klemmbreite WC

    27 mm

    Klemmenhöhe

    37 mm
    Befestigungsschraube

    Klemmschraube CL

    M5

    Schraubenwerkstoff

    304 Stainless Steel
    zusätzliche Information

    Stangenmaterial

    1.4301

    Gewicht (kg)

    0.242500

    Hersteller

    JW Winco/ Otto Ganter

    UPC

    634529314708

    Herkunftsland

    Spanien

    Tariff Code

    7609.00.0000

    UNSPC

    31162908
    Produkthinweise

    Anmerkung 1

    Performance ratings are for guidance only. The user must determine suitability for a particular application.

    Prop 65

    WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
