    MT10:12-CBSW-20-A

    45,60 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 45,60 €
    10 41,96 €
    25 37,99 €
    50 34,20 €
    100 Angebot anfordern
    Auf Lager
    Registered users receive a 5% discount
    Nur noch 3 verfügbar

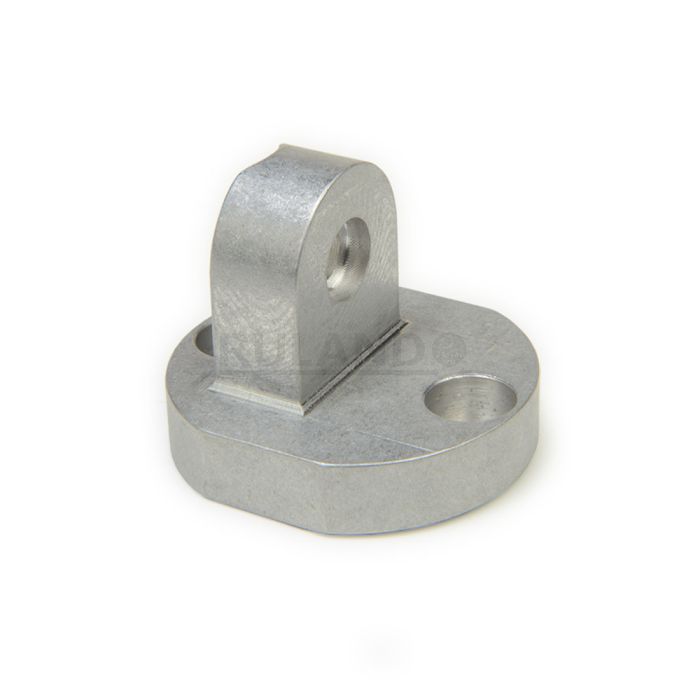

    Ruland Swivel Clamp Connector Base, Ruland Swivel Thru Hole 5.5mm, Clamp Width 20mm, Clamp Screw M5, Aluminum

    PRODUKTSPEZIFIKATIONEN

    Ruland MT10:12-CBSW-20-A is a swivel clamp connector base with a 35mm base width, 38mm base diameter, 20mm clamp width, M5 clamp screw, and 30mm overall length. It is designed to fit with MT10, MT12, and MT10:12 swivel clamp joints, t-swivel clamp joints, and swivel mounts with the same width and height. When combined with a swivel clamp or connector MT10:12-CBSW-20-A is an ideal articulating mounting solution for screens, sensors, reflectors, plexiglass machine guards, and other components that require frequent adjustments. An MT10:12-SWALK-M5-20 adjustable clamping handle can be used to join it to clamps and connectors for rapid repositioning without the use of tools. It is aluminum and screws are 304 stainless steel for use in most industrial applications. MT10:12-CBSW-20-A can be permanently installed on extruded aluminum frames, sheet metal, and other surfaces using M5 hardware or the user can opt for portability by using MAGNET-43-27 magnetic base. It is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Halterungsbreite WB

    35 mm

    Halterungshöhe H2

    8 mm

    Fuß durchmesser D1

    38 mm

    Klemmenlänge L1

    20 mm

    Klemmbreite WC

    10 mm

    Gesamthöhe H1

    30 mm

    Mitte zu Mitte LC

    27 mm

    Kante zur Mitte L2

    20 mm

    Montagebohrungsdurchmesser MC

    M5

    Gegenbohrung zur Basis CB

    2,5 mm

    Schwenkgegenbohrungsdurchmesser 1 S1

    5,5 mm

    Schwenkgegenbohrungsdurchmesser 2 S2

    9 mm
    zusätzliche Information

    Materialspezifikation

    Aluminium

    Hersteller

    JW Winco/ Otto Ganter

    Herkunftsland

    Deutschland

    Gewicht (kg)

    0.031000

    UPC

    634529231418

    Tariff Code

    7609.00.0000

    UNSPC

    31162908
    Produkthinweise

    Anmerkung 1

    Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.
