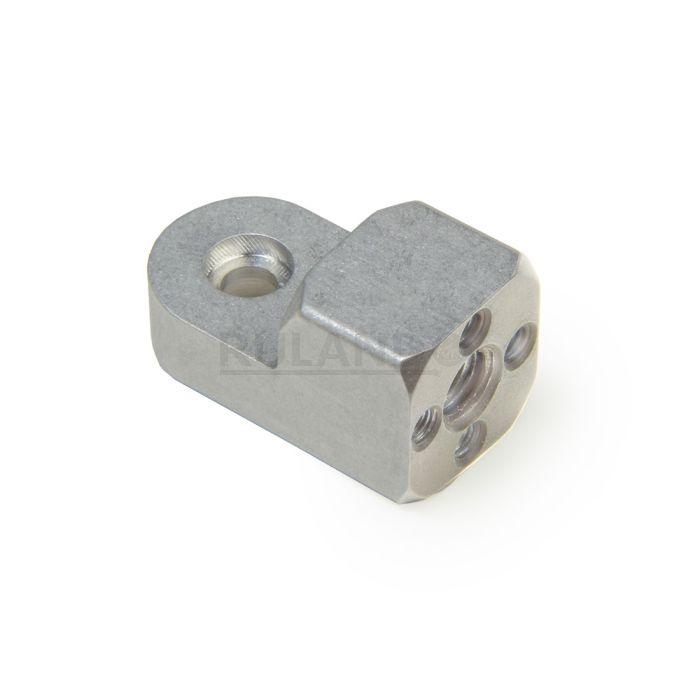

Ruland Swivel Mounting Block, Width/Height 20mm, Length 38mm, Aluminum

PRODUKTSPEZIFIKATIONEN

Ruland MT10:12-SWMB-M6-A is a cross pattern swivel mounting block with an M6 tapped center hole, M4 threads in the cross, a 10mm base height, a 20mm width and height, a and 38mm overall length. It is designed to fit with Ruland modular mounting system swivel components that begin with MT10 or MT12. MT10:12-SWMB-M6-A is aluminum and screws are 304 stainless steel for use in most industrial applications. This swivel mounting block is used to support brackets for mounting sensors, screens, reflectors, plexiglass machine guards, and other industrial components. It has a cross pattern allowing the user to mount with a single M6 screw through the center of the bracket or with multiple M4 screws in the arms of the cross. The use of a cross pattern prevents the bracket from rotating if the mounted component has high mass or will have force applied to it such as a screen. An MT10:12-SWALK-M5-20 adjustable clamping handle can be used to rapidly reposition MT10:12-SWMB-M6-A without the use of tools. It is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUKTSPEZIFIKATIONEN

Abmessungen

Mittiges Gewinde C1

M6

Kreuz Gewinde C2

M4 x 4

Durchmesser Gegenbohrung K1

8,5 mm

Durchmesser Gegenbohrung K2

5,5 mm

Breite und Höhe W1

20 mm

Halterungshöhe H1

10 mm

Mitte zu Mitte LC

14 mm

Kante zur Mitte der Gelenkbohrung L2

28 mm

Gesamtlänge L1

38 mm

Nabenlänge H2

17 mm

zusätzliche Information

Materialspezifikation

Aluminium

Hersteller

JW Winco/ Otto Ganter

Herkunftsland

Deutschland

Gewicht (kg)

0.024000

UPC

634529230091

Tariff Code

7609.00.0000

UNSPC

31162908

Produkthinweise

Anmerkung 1

Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.

MT10:12-SWMB-M6-A
